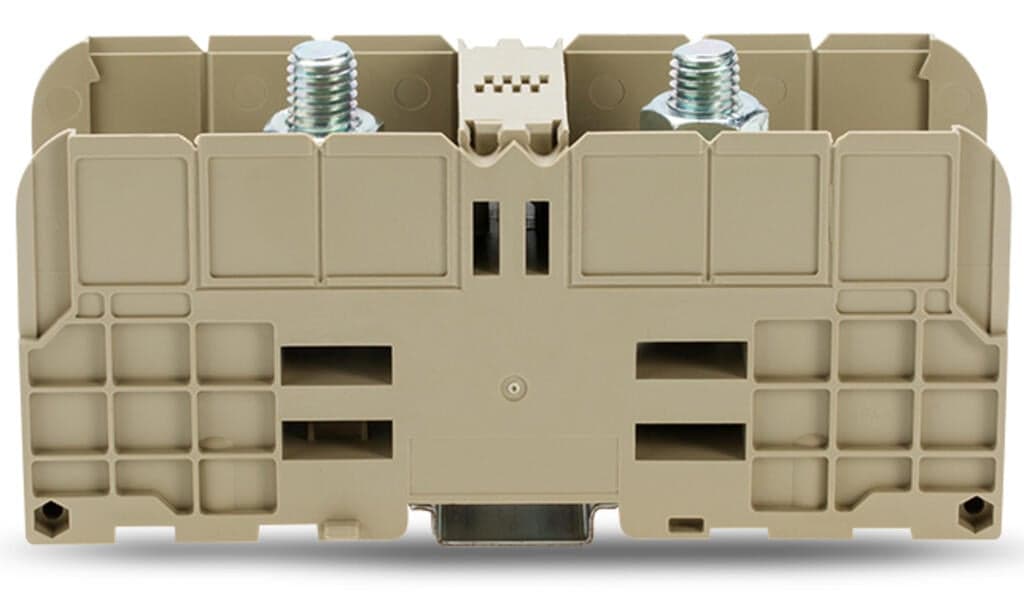

Product Model
884-1800
Selling Points
- 1Designed for easy installation on DIN rails.
- 2Operates from -40°F to 120°F.
- 3Ensures reliable connections with M12 stud bolts.
- 4Made from high-quality polyamide 6.6 material.
- 5Meets UL 1059 and CSA approvals for safety and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 2 | Total number of potentials | 1 |
Number of levels | 1 | Connection position | top |
Width | 55?mm?/ 2.165?inches | Height | 164?mm?/ 6.457?inches |
Depth from upper-edge of DIN-rail | 78?mm?/ 3.071?inches | Tightening torque | 14 … 31?Nm |
Mounting type | DIN-35 rail | Note (material data) | Information on material specifications can be found here |
Color | beige | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Weight | 390g |
Continuous operating temperature | -40 … +120?°C | ETIM 9.0 | EC000897 |
ETIM 8.0 | EC000897 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 5?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4055143941747 |
Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
Rated voltage (III / 3) | 1000V | Rated impulse voltage (III / 3) | 8kV |
Rated current | 353A | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
Approvals per | UL 1059 | Rated voltage UL (Use Group B) | 1000V |
Rated current UL (Use Group B) | 380A | Rated voltage UL (Use Group C) | 1000V |
Rated current UL (Use Group C) | 380A | Power loss, per pole (potential) | 11.215W |
Rated current I<sub>N</sub> for specified power loss | 353A | Resistance value for specified, current-dependent power loss | 9Ω |
Connection technology | Bolt-type connection | Actuation type | Open-end, ring, socket wrench; 19 mm |
Connectable conductor materials | Copper | Nominal cross-section | 185 mm2 |
Clamping range | 10 … 185?mm2?/ 8?AWG … 500?kcmil | Type of cable lugs per DIN 46234 | Cable lugs for solder-free connectionsRing type, without insulating sleeve, for copper conductors |
DIN 46234: 1 cable lug per side | 10 … 240?mm2 | DIN 46234: 2 cable lugs per side | 10 … 185?mm2 |
Type of cable lugs per DIN 46235 | Cable lugs for compression connectionsCover plate type for copper conductors | DIN 46235: 1 cable lug per side | 25 … 240?mm2 |
DIN 46235: 2 cable lugs per side | 25 … 185?mm2 | Thread size | M12 |
Specifications may be subject to change without notice
