Product Model
884-1843
Selling Points
- 1High current rating up to 353A.
- 2Compatible with M12 stud bolts.

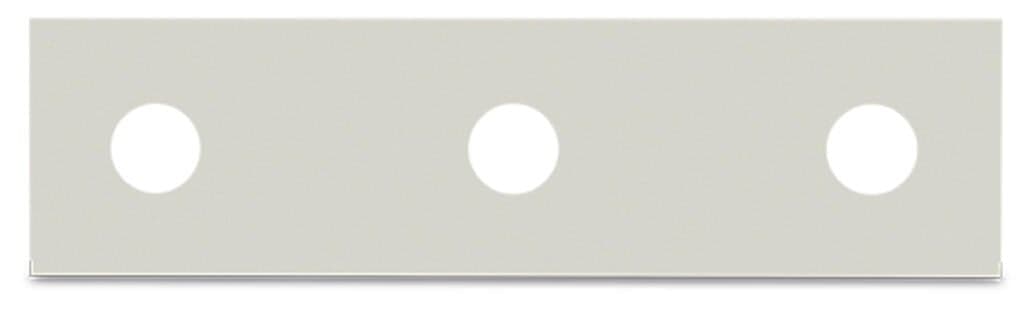

- 33-way jumper design for versatile use.
- 4Unplated and white for easy identification.
- 5Compliant with IEC/EN, UL, and CSA standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note (material data) | Information on material specifications can be found here | Color | white |
Weight | 197g | ETIM 9.0 | EC000489 |
ETIM 8.0 | EC000489 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 10?pcs | Packaging type | bag |
Country of origin | DE | GTIN | 4055143941945 |
Customs tariff number | 8536698000 | RoHS Compliance Status | Compliant,No Exemption |
Rated voltage (III / 3) | 1000V | Rated current | 353A |
Rated voltage UL (Use Group B) | 1000V | Rated current UL (Use Group B) | 360A |
Rated voltage UL (Use Group C) | 1000V | Rated current UL (Use Group C) | 360A |
Rated voltage UL (Use Group D) | 1000V | Rated current UL (Use Group D) | 360A |
Rated voltage CSA (Use Group B) | 1000V | Rated current CSA (Use Group B) | 380A |
Rated voltage CSA (Use Group C) | 1000V | Rated current CSA (Use Group C) | 380A |
Rated voltage CSA (Use Group D) | 1000V | Rated current CSA (Use Group D) | 380A |
Specifications may be subject to change without notice
