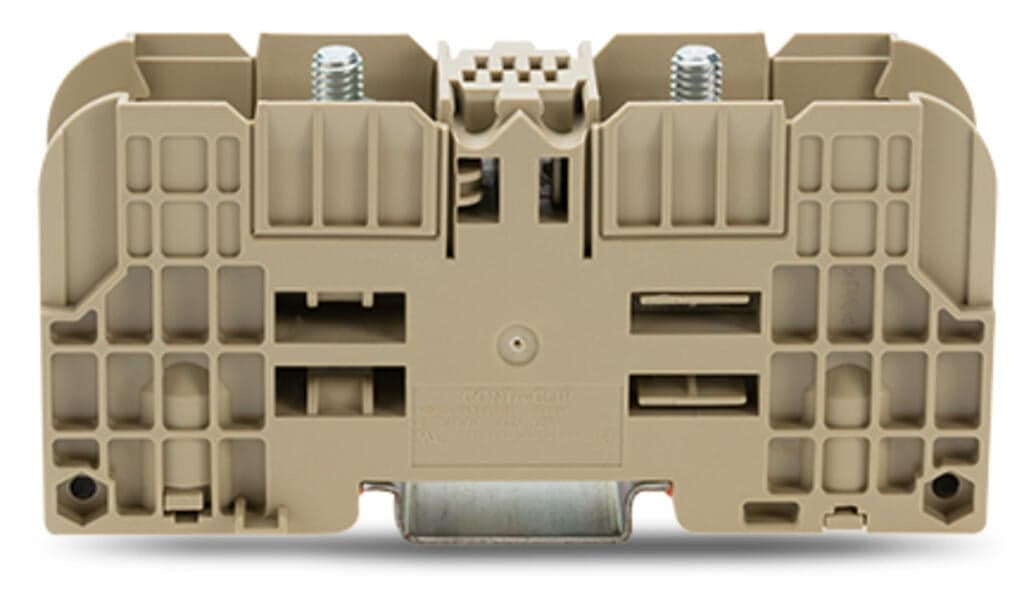

Product Model
884-3500
Selling Points
- 1High-quality bolt-type connections ensure secure and reliable electrical connections.
- 2Compliant with CSA, IEC, and UL standards for safety and performance.
- 335 mm² nominal cross-section accommodates a wide range of conductor sizes.
- 4Beige color for easy identification in industrial settings.
- 5Compatible with DIN-35 rail mounting for versatile installation options.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 2 | Total number of potentials | 1 |
Number of levels | 1 | Connection position | top |
Width | 27?mm?/ 1.063?inches | Height | 107?mm?/ 4.213?inches |
Depth from upper-edge of DIN-rail | 51?mm?/ 2.008?inches | Tightening torque | 3 … 6?Nm |
Mounting type | DIN-35 rail | Note (material data) | Information on material specifications can be found here |
Color | beige | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Weight | 80.7g |
Continuous operating temperature | -40 … +120?°C | ETIM 9.0 | EC000897 |
ETIM 8.0 | EC000897 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 10?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4055143941761 |
Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
Rated voltage (III / 3) | 1000V | Rated impulse voltage (III / 3) | 8kV |
Rated current | 125A | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
Approvals per | CSA 22.2 No 158 | Rated voltage UL (Use Group B) | 1000V |
Rated current UL (Use Group B) | 130A | Rated voltage UL (Use Group C) | 1000V |
Rated current UL (Use Group C) | 130A | Rated voltage UL (Use Group D) | 1000V |
Rated current UL (Use Group D) | 130A | Rated voltage UL (Use Group E) | 1,000V |
Rated current UL (Use Group E) | 130A | Rated voltage CSA (Use Group B) | 1000V |
Rated current CSA (Use Group B) | 130A | Rated voltage CSA (Use Group C) | 1000V |
Rated current CSA (Use Group C) | 130A | Rated voltage CSA (Use Group D) | 1000V |
Rated current CSA (Use Group D) | 130A | Power loss, per pole (potential) | 4.062W |
Rated current I<sub>N</sub> for specified power loss | 125A | Resistance value for specified, current-dependent power loss | 0Ω |
Connection technology | Bolt-type connection | Actuation type | Open-end, ring, socket wrench; 10 mm |
Connectable conductor materials | Copper | Nominal cross-section | 35 mm2 |
Clamping range | 2.5 … 50?mm2?/ 14 … 1/0?AWG | Type of cable lugs per DIN 46234 | Cable lugs for solder-free connectionsRing type, without insulating sleeve, for copper conductors |
DIN 46234: 1 cable lug per side | 2.5 … 50?mm2 | Type of cable lugs per DIN 46235 | Cable lugs for compression connectionsCover plate type for copper conductors |
DIN 46235: 1 cable lug per side | 6 … 25?mm2 | Thread size | M6 |
Specifications may be subject to change without notice
