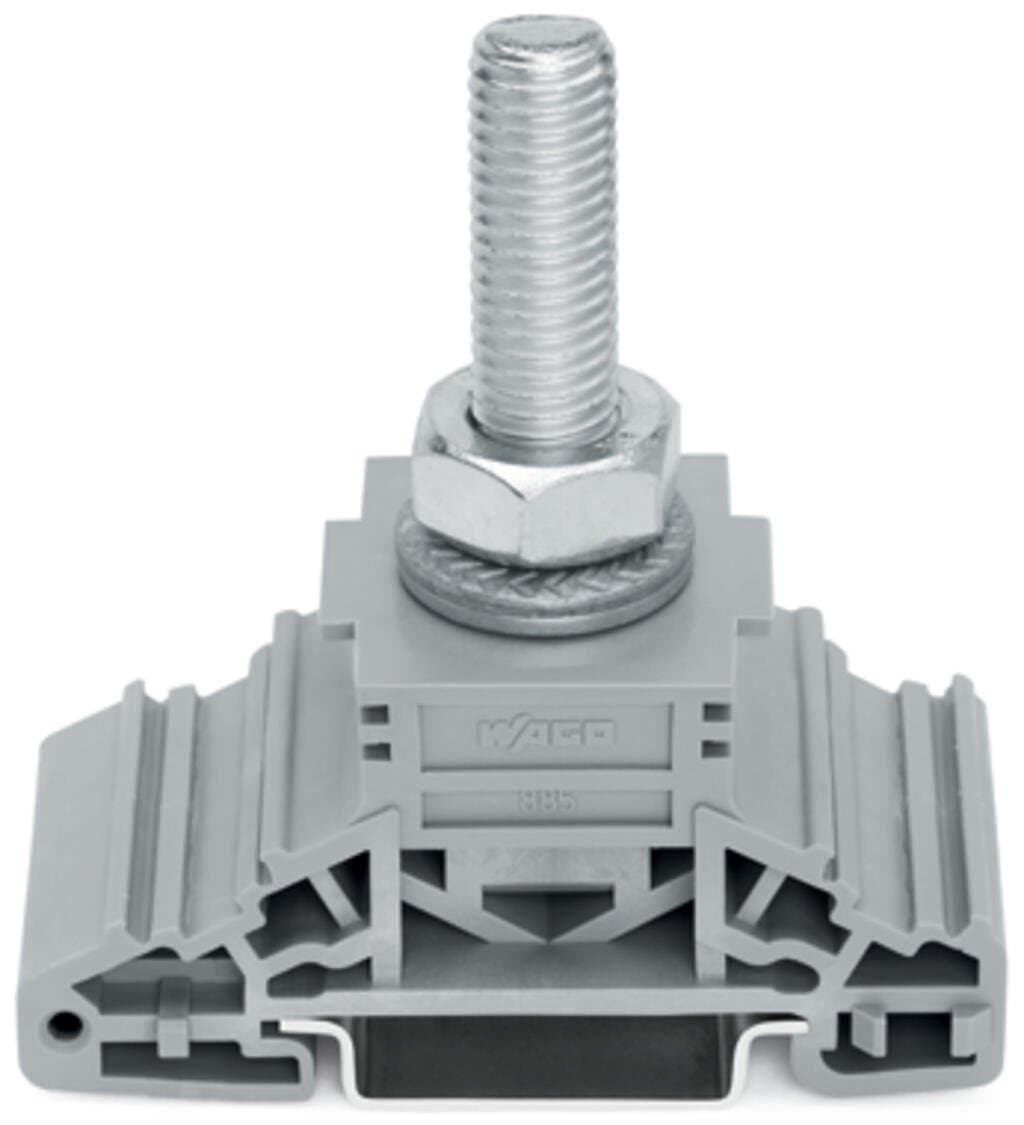

Product Model
885-110
Selling Points
- 1High-Current Capability: Supports up to 269A of rated current.
- 2DIN-Rail Mounting: Compatible with DIN-35 rail (35 x 15 and 35 x 7.5).
- 3Robust Construction: Made from durable gray material with a weight of 88.216g.
- 4Easy Installation: Features lateral marker slots for easy wire identification.
- 5Comprehensive Approvals: Meets C22.2 No 158 and UL 1059 standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 1 | Total number of potentials | 1 |
Number of levels | 1 | Width | 33.8?mm?/ 1.331?inches |
Height | 67?mm?/ 2.638?inches | Depth from upper-edge of DIN-rail | 66.7?mm?/ 2.626?inches |
Tightening torque | 10 … 20?Nm | Mounting type | DIN-35 rail |
Marking level | Side marking | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.831MJ | Weight | 88.2g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-20 |
eCl@ss 9.0 | 27-14-11-20 | ETIM 9.0 | EC000897 |
ETIM 8.0 | EC000897 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 20?pcs | Packaging type | box |
Country of origin | CN | GTIN | 4050821049241 |
Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
Rated voltage (III / 3) | 1000V | Rated impulse voltage (III / 3) | 8kV |
Rated current | 269A | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
Approvals per | CSA 22.2 No 158 | Power loss, per pole (potential) | 8.683W |
Rated current I<sub>N</sub> for specified power loss | 269A | Resistance value for specified, current-dependent power loss | 0Ω |
Connection technology | Bolt-type connection | Actuation type | Open-end, ring, socket wrench; 17 mm |
Connectable conductor materials | Copper | Clamping range | 6 … 120?mm2?/ 10?AWG … 250?kcmil |
Type of cable lugs per DIN 46234 | Cable lugs for solder-free connectionsRing type, without insulating sleeve, for copper conductors | Type of cable lugs per DIN 46235 | Cable lugs for compression connectionsCover plate type for copper conductors |
Thread size | M10 |
Specifications may be subject to change without notice
