Product Model

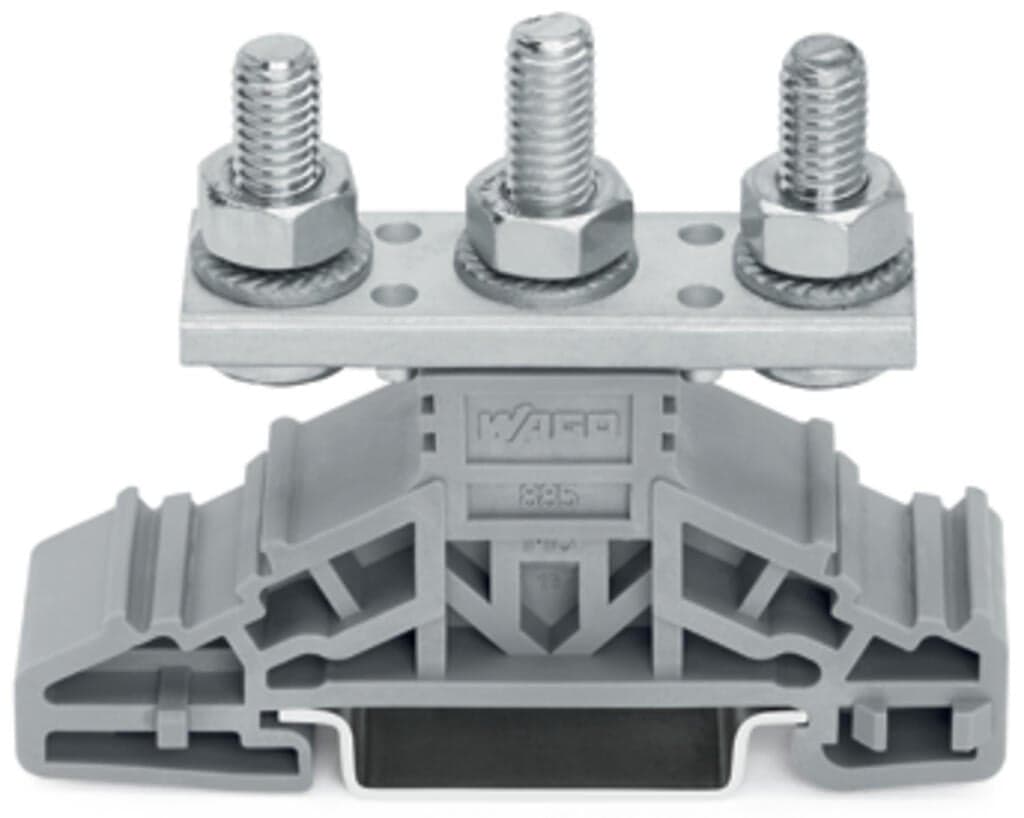

885-306
Selling Points
- 1Durable Construction: Built with high-quality copper materials for reliable connections.
- 2Versatile Mounting: Compatible with DIN-rail 35 x 15 and 35 x 7.5, ensuring flexibility in your setup.
- 3Efficient Power Handling: Supports a rated current of 125A, making it ideal for demanding applications.
- 4Easy Identification: Features lateral marker slots for quick and easy identification of connections.
- 5Compliance and Certifications: Meets UL 1059 and EN 60947 standards, ensuring safety and reliability in your system.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 2 | Total number of potentials | 1 |
Number of levels | 1 | Width | 17.8?mm?/ 0.701?inches |
Height | 67?mm?/ 2.638?inches | Depth from upper-edge of DIN-rail | 48.7?mm?/ 1.917?inches |
Tightening torque | 3 … 6?Nm | Mounting type | DIN-35 rail |
Marking level | Side marking | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.39MJ | Weight | 66.6g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-20 |
eCl@ss 9.0 | 27-14-11-20 | ETIM 9.0 | EC000897 |
ETIM 8.0 | EC000897 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 25?pcs | Packaging type | box |
Country of origin | CN | GTIN | 4050821049258 |
Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
Rated voltage (III / 3) | 1000V | Rated impulse voltage (III / 3) | 8kV |
Rated current | 125A | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
Approvals per | CSA 22.2 No 158 | Power loss, per pole (potential) | 4.062W |
Rated current I<sub>N</sub> for specified power loss | 125A | Resistance value for specified, current-dependent power loss | 0Ω |
Connection technology | Bolt-type connection | Actuation type | Open-end, ring, socket wrench; 10 mm |
Connectable conductor materials | Copper | Clamping range | 2.5 … 35?mm2?/ 14 … 2?AWG |
Type of cable lugs per DIN 46234 | Cable lugs for solder-free connectionsRing type, without insulating sleeve, for copper conductors | Type of cable lugs per DIN 46235 | Cable lugs for compression connectionsCover plate type for copper conductors |
Thread size | M6 | Test specification <br/>Railway applications – <br/>Rolling stock – <br/>Electronic equipment | DIN EN 50155 (VDE 0115-200):2022-06 |
Test procedure <br/>Railway applications – <br/>Rolling stock equipment – <br/>Shock and vibration tests | DIN EN 61373 (VDE 0115-0106):2011-04 | Spectrum/Installation location | Service life test, Category?1, Class?A/B |
Function test with noise-like vibration | Test passed according to Section 8 of the standard | Frequency | f1= 5 Hz to f2= 150 Hz |
Acceleration | 5g (highest test level used for all axes) | Test duration per axis | 5 h |
Test directions | X, Y and Z axes | Monitoring for contact faults/interruptions | Passed |
Voltage drop measurement before and after each axis | Passed | Simulated service life test through increased levels of noise-like vibration | Test passed according to Section 9 of the standard |
Extended test scope: Monitoring for contact faults/interruptions | Passed | Extended test scope: Voltage drop measurement before and after each axis | Passed |
Shock test | Test passed according to Section 10 of the standard | Shock form | Half sine |
Shock duration | 30 ms | Number of shocks per axis | 3 pos. und 3 neg. |
Vibration and shock stress for rolling stock equipment | Passed |
