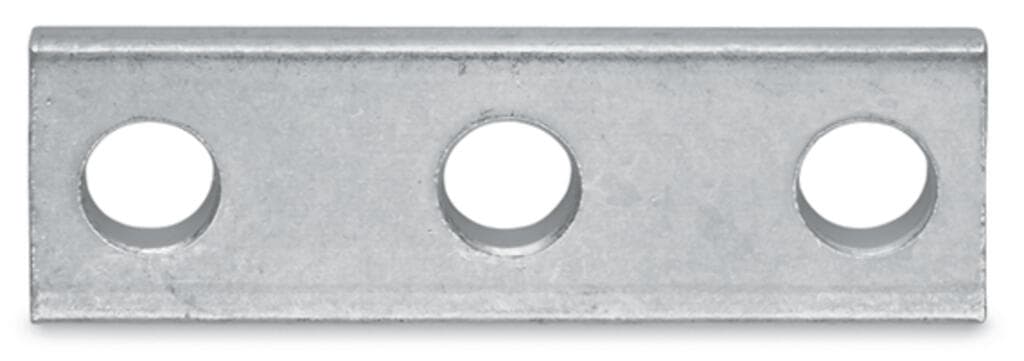

Product Model
885-428
Selling Points
- 1Highly Reliable Design: Built to withstand demanding industrial environments.
- 2Silver-Colored Finish: Durable and resistant to corrosion.
- 3Easy Installation: Simple to connect and disconnect.
- 4Cross-Connection Capabilities: Perfect for linking multiple terminal blocks.
- 5Compliant with RoHS: Environmentally friendly and compliant with EU regulations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 63?mm?/ 2.48?inches | Height | 20?mm?/ 0.787?inches |
Depth | 4?mm?/ 0.157?inches | Jumper assignment | 1-2-3 |
Note (material data) | Information on material specifications can be found here | Color | silver-colored |
Weight | 39g | Product Group | 1 (Rail Mounted Terminal Blocks) |
eCl@ss 10.0 | 27-14-11-92 | eCl@ss 9.0 | 27-14-11-40 |
ETIM 9.0 | EC002848 | ETIM 8.0 | EC002848 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 5?pcs |
Packaging type | bag | Country of origin | CN |
GTIN | 4050821049401 | Customs tariff number | 8536698000 |
RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
