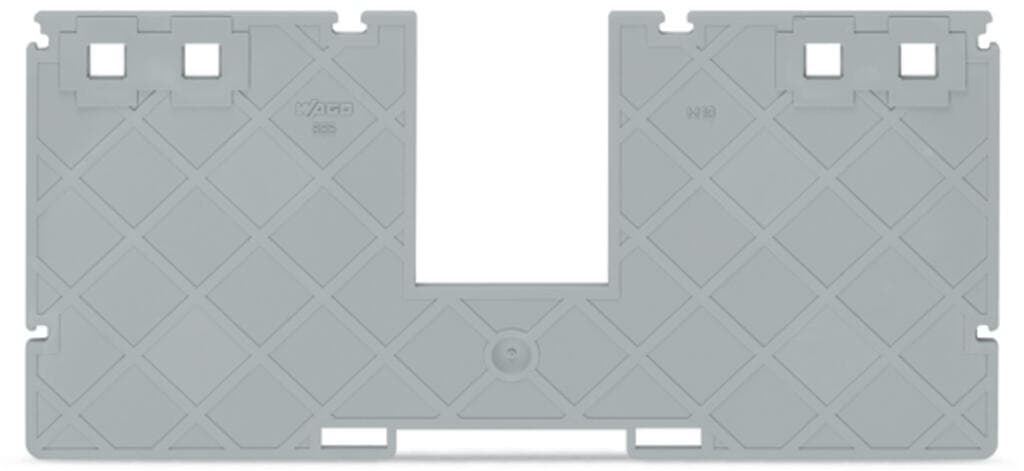

Product Model
885-550
Selling Points
- 1High-Quality Material: Made from polyamide (PA66) for durability and reliability.
- 2ROHS Compliant: Meets environmental product compliance standards, ensuring eco-friendliness.
- 3Versatile Design: Compatible with M10 stud terminal blocks and suitable for various electrical applications.
- 4Easy Installation: Features a jumper bar recess for seamless integration into your electrical setup.
- 5Compact Size: 2mm thick and 157mm wide, perfect for space-efficient designs in industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 2?mm?/ 0.079?inches | Height | 157?mm?/ 6.181?inches |
Depth | 76.8?mm?/ 3.024?inches | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.603MJ | Weight | 20.1g |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-33 |
eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 25?pcs | Packaging type | box |
Country of origin | CN | GTIN | 4050821049340 |
Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
