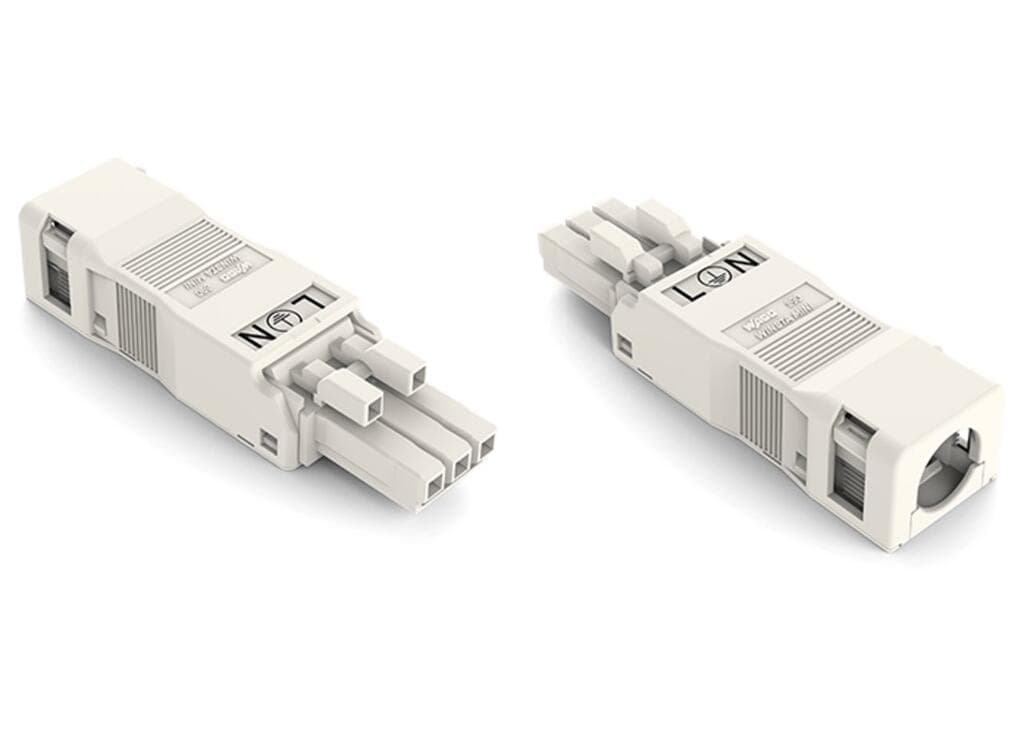

Product Model
890-123
Selling Points
- 1Push-in CAGE CLAMP Technology: Easy and secure connection with minimal effort.
- 2Strain Relief Housing: Protects against mechanical stress and ensures long-lasting performance.
- 3High-Rated Current Capacity: Handles up to 16A with a nominal voltage of 250V (III/3).
- 4Durable Construction: Made from copper or copper alloy with a surface-treated finish.
- 5Versatile Compatibility: Suitable for solid and stranded conductors with various cross-sections.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 3 | Total number of potentials | 3 |
Pin spacing | 4.4?mm?/ 0.173?inches | Width | 17.9?mm?/ 0.705?inches |
Height | 14?mm?/ 0.551?inches | Depth | 63.6?mm?/ 2.504?inches |
Use | General mains applications | Coding | A |
Variable coding | No | Marking | L ? N |
Potential Marking | L ? N | Mating force of a plug-in connection | approx. 20 … 70 N (depending on pole number) |
Retention force of a plug-in connection | Locked: > 80 N | Unmating force of a plug-in connection | Unlocked: approx. 20 … 70 N (depending on pole number) |
Number of mating cycles | 200, without resistive load | Protection type | IP40 |
Contact type (pluggable connector) | Female connector/socket | Connector (connection type) | for conductor |
Mismating protection | Yes | Note on mismating protection | AllWINSTA?components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180c.) plugging while laterally staggeredd.) plugging one pole |
Locking lever | Can be retrofitted | Locking of plug-in connection | locking lever |
Note on locking system | All connectors for mounted installations (snap-in versions for lighting fixtures or devices, all types of PCB and distribution connectors) are factory-equipped with locking levers to ensure plugs and sockets are securely locked. Additional locking levers are only required for flying leads (plug/socket). | Strain relief | strain relief housing |
Note (material data) | Information on material specifications can be found here | Color | white |
Cover color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Clamping spring material | Chrome-nickel spring steel (CrNi) | Contact material | Copper or copper alloy; surface-treated |
Contact plating | Tin | Fire load | 0.295MJ |
Connector color | white | Strain relief color | white |
Weight | 6.8g | Processing temperature | -5 … +40?°C |
Continuous operating temperature | -35 … +85?°C | Note on continuous operating temperature | Insulating parts for temperatures ≤ 105 °C |
Product Group | 20 (Winsta) | eCl@ss 10.0 | 27-44-06-05 |
eCl@ss 9.0 | 27-44-06-05 | ETIM 9.0 | EC002560 |
ETIM 8.0 | EC002560 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 50?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454232962 |
Customs tariff number | 8536694040 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | IEC/EN 60664-1 | Rated voltage (III / 3) | 250V |
Rated impulse voltage (III / 3) | 4kV | Rated current | 16A |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Note for the US market | Some versions may also be used for current interruption in accordance with the UL certificate in select applications with currents below 5 A and voltages up to 600 V. For further information, please contact your local sales office. |
Rated voltage (UL 1977) | 600V | Rated current UL 1977 | 14A |
Note on contact resistance | approx. 1 m? of contact resistanceapprox. 0.25 m? contact transition plug/socket | Connection technology | Push-in CAGE CLAMP? |
Actuation type | Operating tool | Nominal cross-section | 1.5 mm2 / 16 AWG |
Solid conductor | 0.25 … 1.5?mm2?/ 22 … 16?AWG | Solid conductor; push-in termination | 0.75 … 1.5?mm2?/ 20 … 16?AWG |
Stranded conductor | 0.25 … 1?mm2?/ 22 … 18?AWG | Fine-stranded conductor | 0.25 … 1.5?mm2?/ 22 … 16?AWG |
Fine-stranded conductor; with insulated ferrule | 0.25 … 0.75?mm2?/ 22 … 20?AWG | Fine-stranded conductor; with uninsulated ferrule | 0.25 … 0.75?mm2?/ 22 … 20?AWG |
Fine-stranded conductor; with ferrule; push-in termination | 0.75?mm2?/ 20?AWG | Strip length | 9?mm?/ 0.35?inches |
Number of poles | 3 | Conductor entry direction to mating direction | 0° |
Strip length (outer insulation) | 40mm |
