Product Model
890-1636
Selling Points
- 1High Reliability: Ensures secure connections with low contact resistance (approx. 1 mΩ).
- 2Low Profile: Compact design with 4.4 mm pole spacing, suitable for flying leads.
- 3Robust Design: Rated voltage up to 250 V and impulse voltage up to 4 kV, ensuring safety in various applications.
- 4Mismating Protection: 100% protected against mismating, ensuring plug and socket are securely locked.
- 5Versatile Usage: Suitable for general mains applications, including grid lighting and flush-mount installations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Total number of potentials | 2 | Pin spacing | 4.4?mm?/ 0.173?inches |
Width | 12?mm?/ 0.472?inches | Height | 29?mm?/ 1.142?inches |
Depth | 63.5?mm?/ 2.5?inches | Use | General mains applications |
Coding | A | Variable coding | No |
Marking | L N | Potential Marking | L N |
Mating force of a plug-in connection | approx. 20 … 70 N (depending on pole number) | Retention force of a plug-in connection | When locked: > 80 N |
Unmating force of a plug-in connection | Unlocked: approx. 20 … 70 N (depending on pole number) | Number of mating cycles | 200, without resistive load |

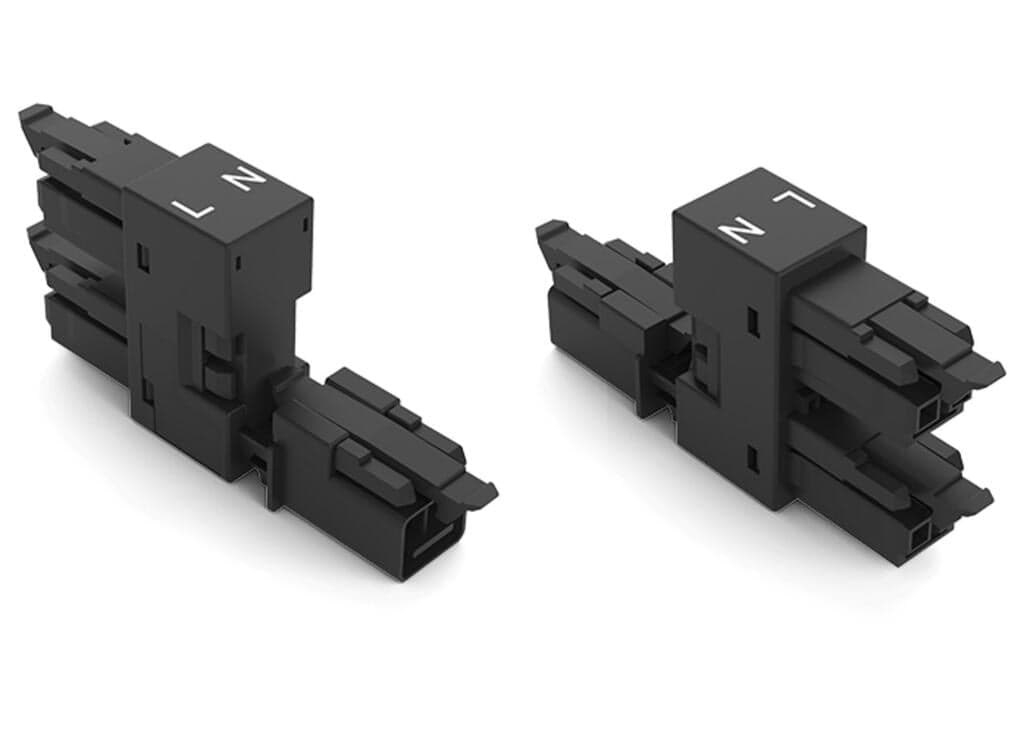

Type of distribution box | h-distribution connector, outputs at one end | Protection type | IP20; IP40 when mated |
Suitable | for flying leads | Contact type (pluggable connector) | Socket/plug |
Mismating protection | Yes | Note on mismating protection | AllWINSTA?components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180c.) plugging while laterally staggeredd.) plugging one pole |
Locking lever | yes | Locking of plug-in connection | locking lever |
Note on locking system | All connectors for mounted installations (snap-in versions for lighting fixtures or devices, all types of PCB and distribution connectors) are factory-equipped with locking levers to ensure plugs and sockets are securely locked. Additional locking levers are only required for flying leads (plug/socket). | Note (material data) | Information on material specifications can be found here |
Color | black | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Contact material | Copper or copper alloy; surface-treated | Contact plating | Tin |
Fire load | 0.195MJ | Weight | 10.1g |
Processing temperature | -5 … +40?°C | Continuous operating temperature | -35 … +85?°C |
Note on continuous operating temperature | Insulating parts for temperatures ≤ 105 °C | Product Group | 20 (Winsta) |
eCl@ss 10.0 | 27-44-06-03 | eCl@ss 9.0 | 27-44-06-03 |
ETIM 9.0 | EC002567 | ETIM 8.0 | EC002567 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 50?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4045454404413 | Customs tariff number | 8536694040 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
Rated voltage (III / 3) | 250V | Rated impulse voltage (III / 3) | 4kV |
Rated current | 16A | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
Note for the US market | Some versions may also be used for current interruption in accordance with the UL certificate in select applications with currents below 5 A and voltages up to 600 V. For further information, please contact your local sales office. | Rated voltage (UL 1977) | 600V |
Rated current UL 1977 | 14A | Note on contact resistance | approx. 1 m? of contact resistanceapprox. 0.25 m? contact transition plug/socket |
Number of poles | 2 |
Specifications may be subject to change without notice
