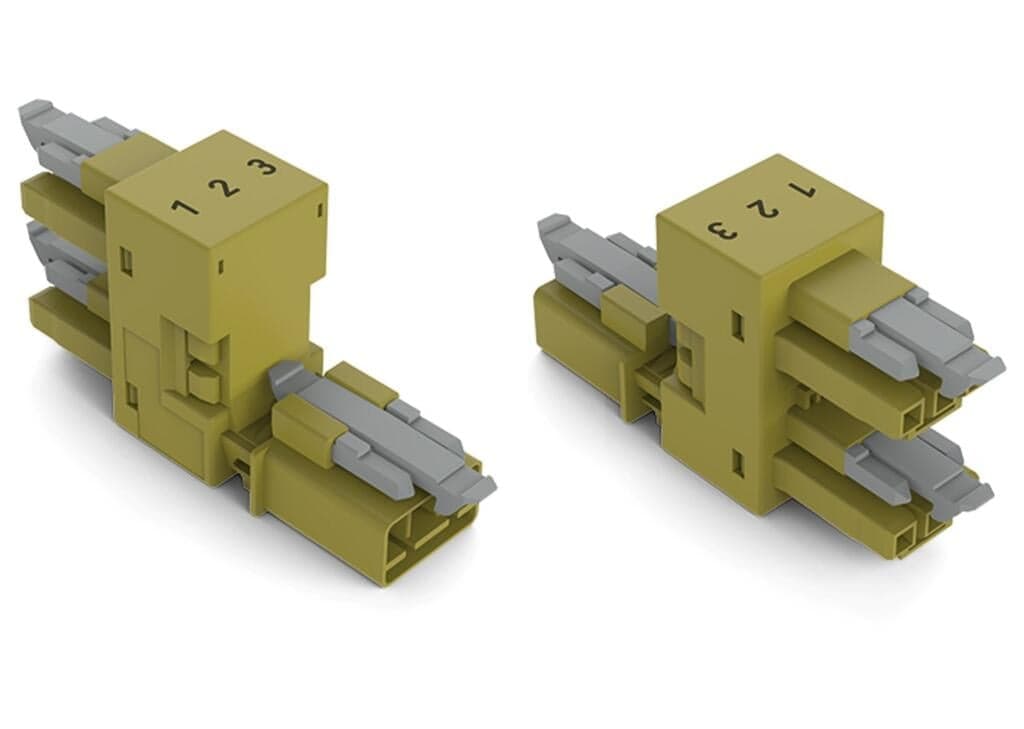

Product Model
890-1762
Selling Points
- 1Secure and Reliable: Equipped with 3 locking levers for secure flying lead connections.
- 2Versatile Application: Suitable for a wide range of applications, including lighting fixtures and control cabinets.
- 3High-Rated Voltage: Rated voltage of 250 V and impulse voltage of 4 kV, ensuring robust electrical performance.
- 4Compact Design: Dimensions of 16.4 mm width, 29 mm height, and 57.85 mm depth for easy installation.
- 5Durable Materials: Constructed from polyamide 66 (PA 66) and copper or copper alloy contacts for long-lasting use.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Variants: | Other pole markings | Total number of potentials | 3 |
Pin spacing | 4.4?mm?/ 0.173?inches | Width | 16.4?mm?/ 0.646?inches |
Height | 29?mm?/ 1.142?inches | Depth | 63.5?mm?/ 2.5?inches |
Use | Control technology | Coding | B |
Variable coding | No | Marking | 1 2 3 |
Potential Marking | 1 2 3 | Mating force of a plug-in connection | approx. 20 … 70 N (depending on pole number) |
Retention force of a plug-in connection | When locked: > 80 N | Unmating force of a plug-in connection | Unlocked: approx. 20 … 70 N (depending on pole number) |
Number of mating cycles | 200, without resistive load | Type of distribution box | h-distribution connector, outputs at one end |
Protection type | IP20; IP40 when mated | Suitable | for flying leads |
Contact type (pluggable connector) | Socket/plug | Mismating protection | Yes |
Note on mismating protection | AllWINSTA?components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180c.) plugging while laterally staggeredd.) plugging one pole | Locking lever | yes |
Locking of plug-in connection | locking lever | Note on locking system | All connectors for mounted installations (snap-in versions for lighting fixtures or devices, all types of PCB and distribution connectors) are factory-equipped with locking levers to ensure plugs and sockets are securely locked. Additional locking levers are only required for flying leads (plug/socket). |
Note (material data) | Information on material specifications can be found here | Color | light green |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Contact material | Copper or copper alloy; surface-treated |
Contact plating | Tin | Fire load | 0.14MJ |
Weight | 13.9g | Processing temperature | -5 … +40?°C |
Continuous operating temperature | -35 … +85?°C | Note on continuous operating temperature | Insulating parts for temperatures ≤ 105 °C |
Product Group | 20 (Winsta) | eCl@ss 10.0 | 27-44-06-03 |
eCl@ss 9.0 | 27-44-06-03 | ETIM 9.0 | EC002567 |
ETIM 8.0 | EC002567 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 50?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4050821530749 |
Customs tariff number | 8536694040 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | IEC/EN 60664-1 | Rated voltage (III / 3) | 250V |
Rated impulse voltage (III / 3) | 4kV | Rated current | 16A |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Rated current (note) | 13 A for 3-pole load |
Note for the US market | Some versions may also be used for current interruption in accordance with the UL certificate in select applications with currents below 5 A and voltages up to 600 V. For further information, please contact your local sales office. | Rated voltage (UL 1977) | 600V |
Rated current UL 1977 | 14A | Note on contact resistance | approx. 1 m? of contact resistanceapprox. 0.25 m? contact transition plug/socket |
Number of poles | 3 |
