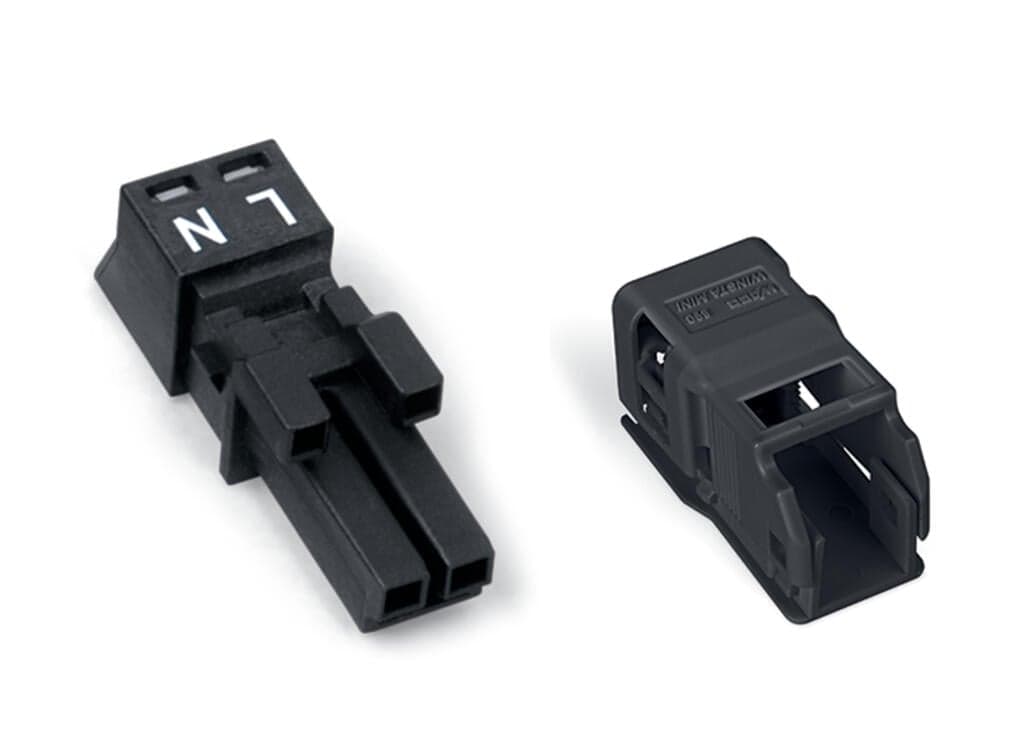

WAGO 890-202/342-000: Reliable and Versatile Terminal Block

Selling Points

1High-quality materials ensure long-lasting performance.
2Easy-to-use design simplifies installation and maintenance.
3Compatible with a wide range of electrical systems.
4Robust connections withstand harsh environmental conditions.
5Compact size saves space in tight installations.

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Clamping units	2	Total number of potentials	2
Pin spacing	4.4?mm?/ 0.173?inches	Width	15.6?mm?/ 0.614?inches
Height	13.2?mm?/ 0.52?inches	Depth	46.5?mm?/ 1.831?inches
Use	General mains applications	Coding	A
Variable coding	No	Marking	L N
Potential Marking	L N	Mating force of a plug-in connection	approx. 20 … 70 N (depending on pole number)
Retention force of a plug-in connection	Locked: > 80 N	Unmating force of a plug-in connection	Unlocked: approx. 20 … 70 N (depending on pole number)
Number of mating cycles	200, without resistive load	Protection type	IP40
Contact type (pluggable connector)	Female connector/socket	Connector (connection type)	for conductor
Mismating protection	Yes	Note on mismating protection	AllWINSTA?components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180c.) plugging while laterally staggeredd.) plugging one pole
Locking lever	Can be retrofitted	Locking of plug-in connection	locking lever
Note on locking system	All connectors for mounted installations (snap-in versions for lighting fixtures or devices, all types of PCB and distribution connectors) are factory-equipped with locking levers to ensure plugs and sockets are securely locked. Additional locking levers are only required for flying leads (plug/socket).	Strain relief	Strain relief housing, short version
Note (material data)	Information on material specifications can be found here	Color	black
Cover color	gray	Material group	I
Insulation material (main housing)	Polyamide (PA66)	Flammability class per UL94	V0
Clamping spring material	Chrome-nickel spring steel (CrNi)	Contact material	Copper or copper alloy; surface-treated
Contact plating	Tin	Fire load	0.147MJ
Connector color	black	Strain relief color	black
Weight	4.8g	Processing temperature	-5 … +40?°C
Continuous operating temperature	-35 … +85?°C	Note on continuous operating temperature	Insulating parts for temperatures ≤ 105 °C
eCl@ss 10.0	27-44-06-05	eCl@ss 9.0	27-44-06-05
ETIM 9.0	EC002560	ETIM 8.0	EC002560
ECCN	NO US CLASSIFICATION	PU (SPU)	50?pcs
Packaging type	box	Country of origin	DE
GTIN	4055143463652	Customs tariff number	85366990990
RoHS Compliance Status	Compliant,No Exemption	Ratings per	IEC/EN 60664-1
Rated voltage (III / 3)	250V	Rated impulse voltage (III / 3)	4kV
Rated current	16A	Legend (ratings)	(III / 3) ? Overvoltage category III / Pollution degree 3
Note for the US market	Some versions may also be used for current interruption in accordance with the UL certificate in select applications with currents below 5 A and voltages up to 600 V. For further information, please contact your local sales office.	Rated voltage (UL 1977)	600V
Rated current UL 1977	14A	Note on contact resistance	approx. 1 m? of contact resistanceapprox. 0.25 m? contact transition plug/socket
Connection technology	Push-in CAGE CLAMP?	Actuation type	Operating tool
Nominal cross-section	1.5 mm2 / 16 AWG	Solid conductor	0.25 … 1.5?mm2?/ 22 … 16?AWG
Solid conductor; push-in termination	0.75 … 1.5?mm2?/ 20 … 16?AWG	Stranded conductor	0.25 … 1?mm2?/ 22 … 18?AWG
Fine-stranded conductor	0.25 … 1.5?mm2?/ 22 … 16?AWG	Fine-stranded conductor; with insulated ferrule	0.25 … 0.75?mm2?/ 22 … 20?AWG
Fine-stranded conductor; with uninsulated ferrule	0.25 … 0.75?mm2?/ 22 … 20?AWG	Fine-stranded conductor; with ferrule; push-in termination	0.75?mm2?/ 20?AWG
Strip length	9?mm?/ 0.35?inches	Number of poles	2
Conductor entry direction to mating direction	0°	Strip length (outer insulation)	17.5mm

Specifications may be subject to change without notice
