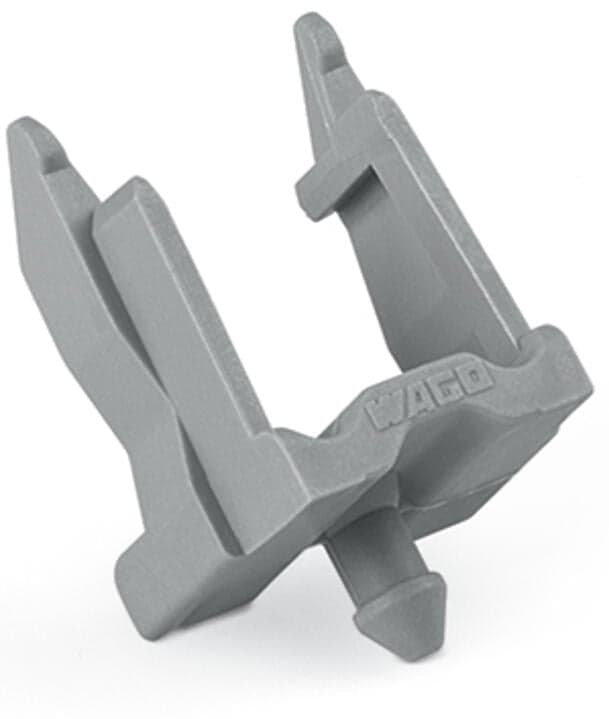

Product Model
890-302
Selling Points
- 1Made from high-quality polyamide (PA66) for long-lasting performance.
- 2Designed to provide reliable connectivity solutions in various industrial settings.
- 3Simple mounting process ensures seamless integration with sockets and plugs.
- 4Operates within a wide temperature range (-35°C to +85°C) for robust performance.
- 5Meets UL94 V0 flammability class and ROHS compliance standards for safety assurance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Suitable | for socket and plug | Note (material data) | Information on material specifications can be found here |
Color | gray | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.014MJ |
Weight | 0.5g | Processing temperature | -5 … +40?°C |
Continuous operating temperature | -35 … +85?°C | Note on continuous operating temperature | Insulating parts for temperatures ≤ 105 °C |
Product Group | 20 (Winsta) | eCl@ss 10.0 | 27-44-06-92 |
eCl@ss 9.0 | 27-44-06-92 | ETIM 9.0 | EC002863 |
ETIM 8.0 | EC002863 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?(50)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4055143838511 |
Customs tariff number | 3926909985 | RoHS Compliance Status | Compliant,No Exemption |
Number of poles | 2 |
Specifications may be subject to change without notice
