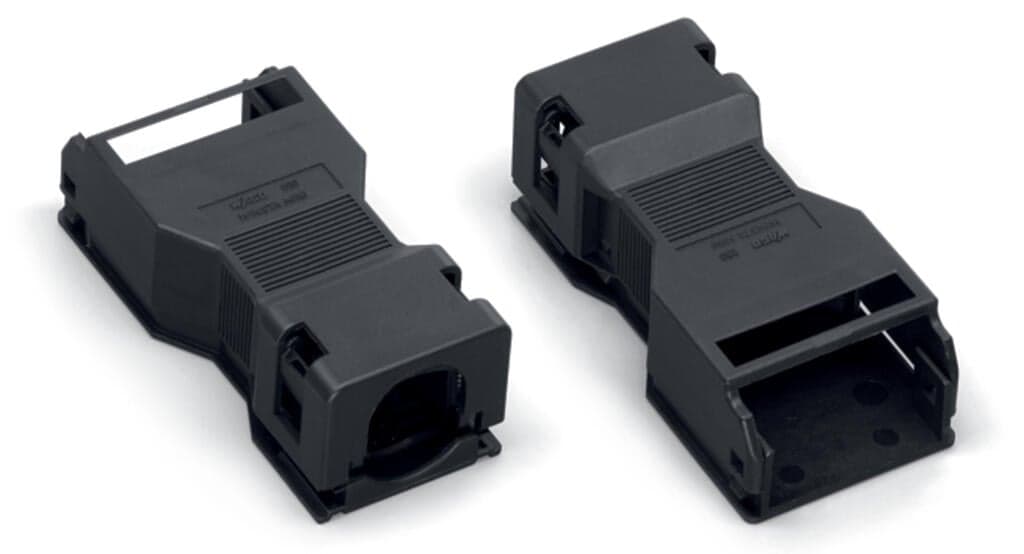

Product Model
890-505
Selling Points
- 1Durable and reliable, ensuring long-term performance in demanding environments.
- 2Provides secure connections with minimal manual effort, reducing wiring time.
- 3Suitable for various industrial applications, including automation and control systems.
- 4Push-in termination simplifies the connection process, saving time and effort.
- 5Long-term consistency ensures minimal service costs and increased equipment reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Pin spacing | 4.4 mm / 0.173 inches | Width | 26.7?mm?/ 1.051?inches |
Height | 15.8?mm?/ 0.622?inches | Depth | 55.15?mm?/ 2.171?inches |
Note (material data) | Information on material specifications can be found here | Color | black |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.211MJ | Weight | 7.2g |
Processing temperature | -5 … +40?°C | Continuous operating temperature | -35 … +85?°C |
Note on continuous operating temperature | Insulating parts for temperatures ≤ 105 °C | Product Group | 20 (Winsta) |
eCl@ss 10.0 | 27-44-06-92 | eCl@ss 9.0 | 27-44-06-92 |
ETIM 9.0 | EC002863 | ETIM 8.0 | EC002863 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 50?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4045454233341 | Customs tariff number | 8538908160 |
RoHS Compliance Status | Compliant,No Exemption | Number of poles | 5 |
Connectable sheathed cable diameter | 6.5 … 10.5?mm | Strip length (outer insulation) | 45mm |
Specifications may be subject to change without notice
