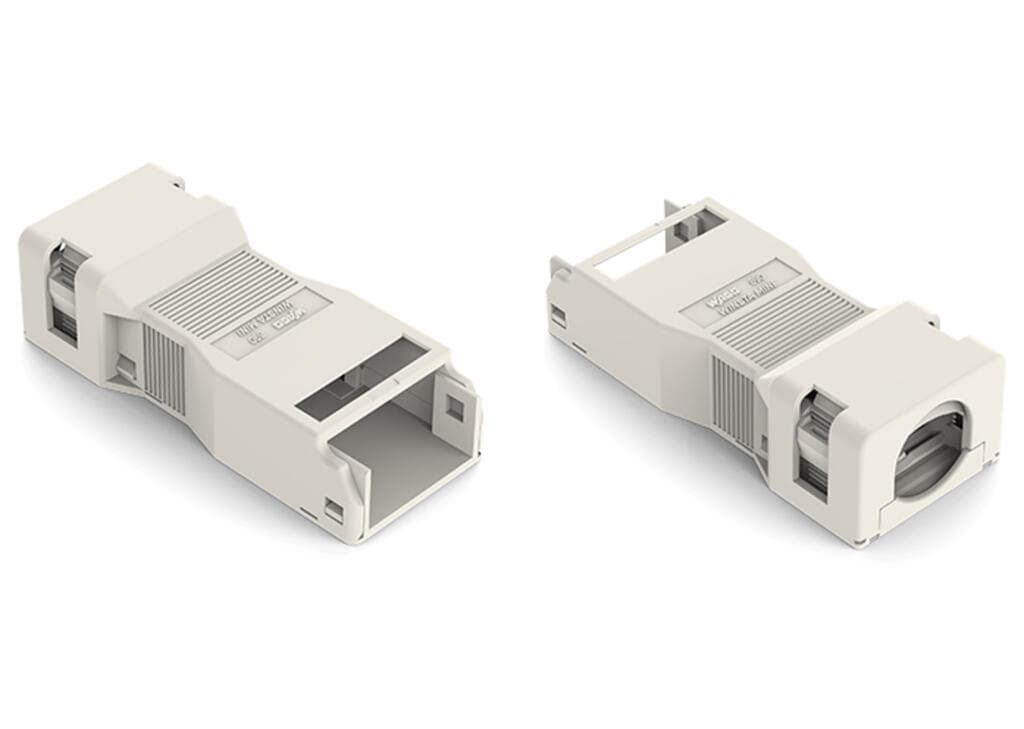

Product Model
890-514
Selling Points
- 1Efficient Connectivity: Provides reliable and efficient connectivity solutions for various applications.
- 2High-Quality Materials: Made from high-quality polyamide (PA66) with a flammability class of UL94 V0.
- 3Mismating Protection: Features a locking clip to prevent mismating, ensuring secure connections.
- 4Versatile Compatibility: Compatible with other WAGO products, making it a preferred choice for professionals.
- 5Durable Design: Designed to withstand operating temperatures from -35°C to +85°C, ensuring long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Pin spacing | 4.4 mm / 0.173 inches | Width | 23.2?mm?/ 0.913?inches |
Height | 16?mm?/ 0.63?inches | Depth | 55?mm?/ 2.165?inches |
Note (material data) | Information on material specifications can be found here | Color | white |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.181MJ | Weight | 5.7g |
Processing temperature | -5 … +40?°C | Continuous operating temperature | -35 … +85?°C |
Note on continuous operating temperature | Insulating parts for temperatures ≤ 105 °C | Product Group | 20 (Winsta) |
eCl@ss 10.0 | 27-44-06-92 | eCl@ss 9.0 | 27-44-06-92 |
ETIM 9.0 | EC002863 | ETIM 8.0 | EC002863 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 50?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4045454233372 | Customs tariff number | 8538908160 |
RoHS Compliance Status | Compliant,No Exemption | Number of poles | 4 |
Connectable sheathed cable diameter | 6.5 … 10.5?mm | Strip length (outer insulation) | 45mm |
Specifications may be subject to change without notice
