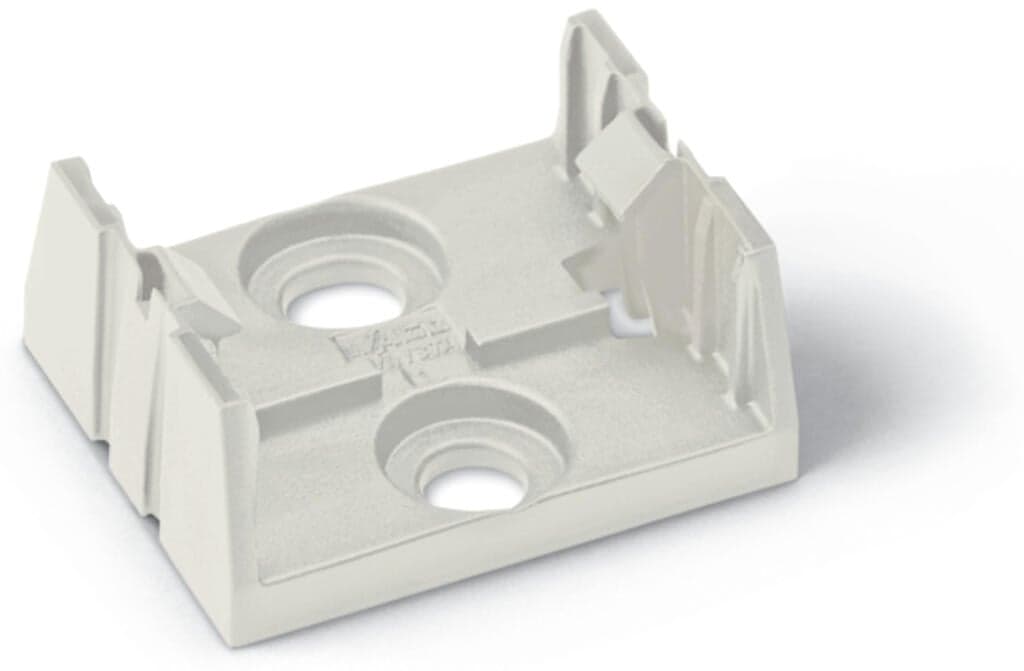

Product Model
890-675
Selling Points
- 1Durable Polyamide (PA66) Construction: Built to withstand various temperatures and environments.
- 2Screw Mount Design: Easy installation with a secure screw mount.
- 35-Pole Configuration: Perfect for distribution connectors, excluding T-distribution connectors.
- 4White Color: Aesthetically pleasing and easy to integrate into any setup.
- 5Wide Temperature Range: Operates from -35°C to +85°C, ensuring reliability in diverse conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Mounting type | Screw mounting | Suitable | for distribution connectors (except T-distribution connectors); 5-pole |
Note (material data) | Information on material specifications can be found here | Color | white |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.071MJ | Weight | 2.4g |
Processing temperature | -5 … +40?°C | Continuous operating temperature | -35 … +85?°C |
Note on continuous operating temperature | Insulating parts for temperatures ≤ 105 °C | Product Group | 20 (Winsta) |
eCl@ss 10.0 | 27-44-06-92 | eCl@ss 9.0 | 27-44-06-92 |
ETIM 9.0 | EC002863 | ETIM 8.0 | EC002863 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 50?(50)?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4055143838863 | Customs tariff number | 3926909985 |
RoHS Compliance Status | Compliant,No Exemption | Number of poles | 5 |
Specifications may be subject to change without notice
