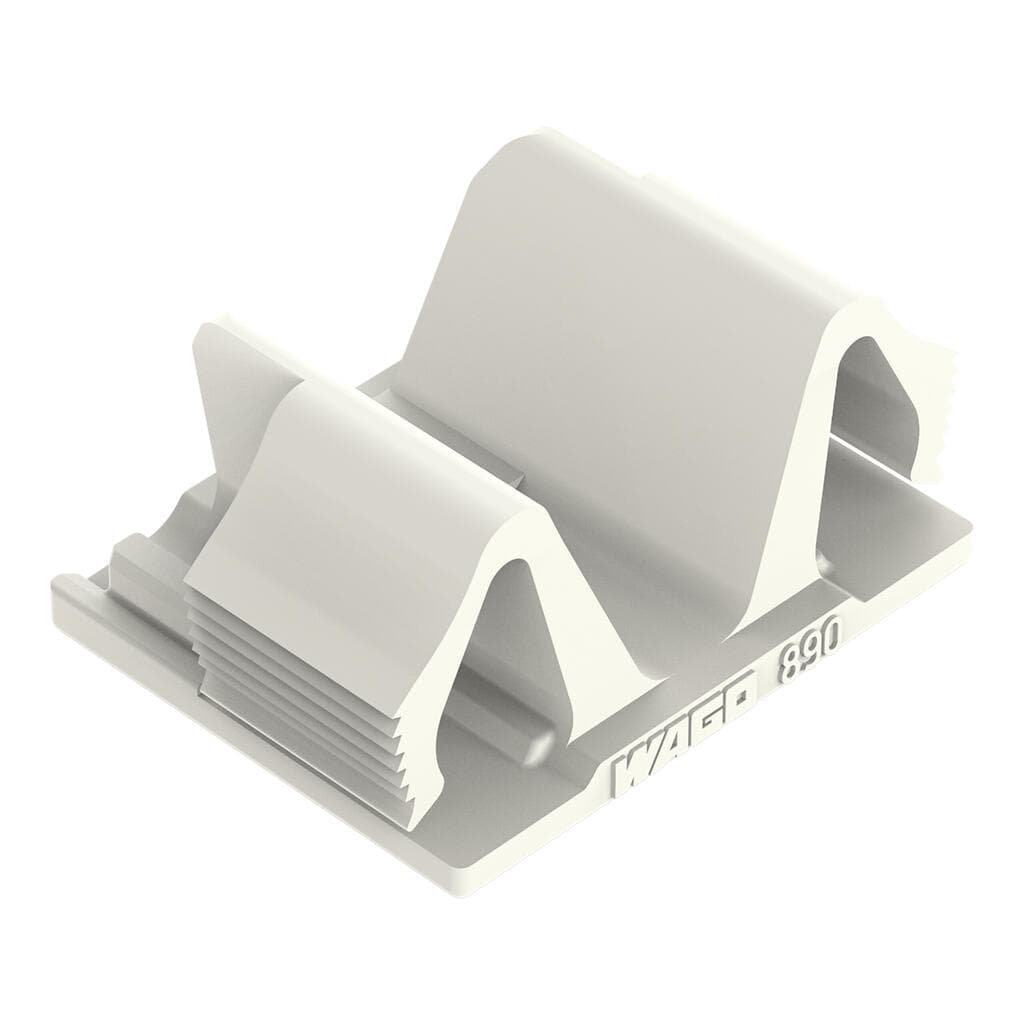

Product Model
890-692
Selling Points
- 1Compact design for conductors up to 1.5 mm².
- 2Quick replacement of defective units during ongoing operation.
- 32-pole configuration for secure connections.
- 4Made from durable white plastic material.
- 5Meets EN 60998 standards for independent equipment approval.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Mounting type | Snap-in flange | Suitable | for cutout |
Note (material data) | Information on material specifications can be found here | Color | white |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.036MJ | Weight | 1.2g |
Processing temperature | -5 … +40?°C | Continuous operating temperature | -35 … +85?°C |
Note on continuous operating temperature | Insulating parts for temperatures ≤ 105 °C | Product Group | 20 (Winsta) |
eCl@ss 10.0 | 27-44-06-92 | eCl@ss 9.0 | 27-44-06-92 |
ETIM 9.0 | EC002863 | ETIM 8.0 | EC002863 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 100?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4045454526504 | Customs tariff number | 3926909985 |
RoHS Compliance Status | Compliant,No Exemption | Number of poles | 2 |
Specifications may be subject to change without notice
