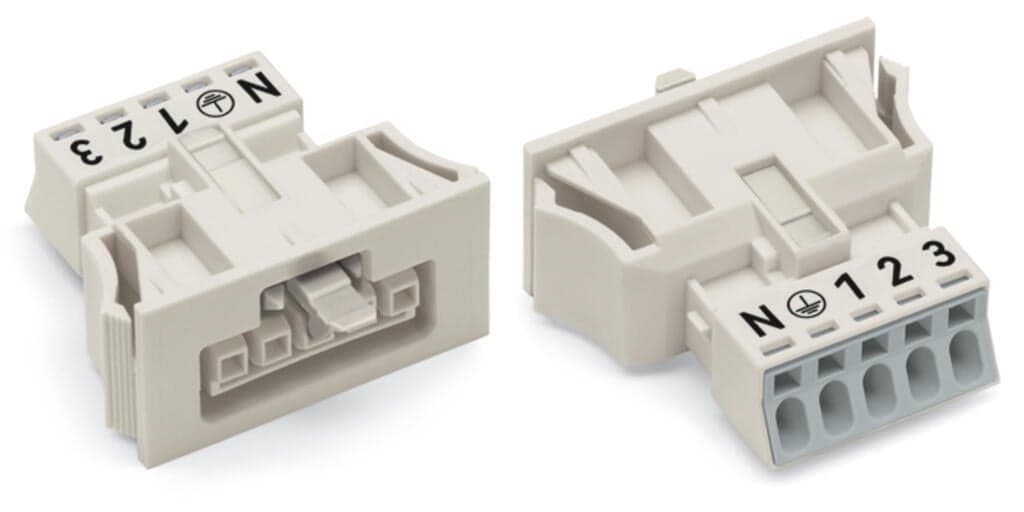

Product Model
890-725
Selling Points
- 1High-Voltage Compatibility: Supports up to 800V and 10A, ideal for demanding electrical projects.
- 2Robust Push-In Termination: Easy and secure connection of conductors with a wide range of sizes (0.14 to 1.5 mm²).
- 3Durable Construction: Built with high-quality materials for long-lasting performance in harsh environments.
- 4Versatile Application: Suitable for both through and ground terminal block configurations, including Ex i applications.
- 5Easy Installation: Simple and quick installation process with minimal tools required, reducing setup time.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | The snap-in connectors must be relieved of tensile and transverse forces.A surface finish can influence the edge radius of the cutouts. This may affect the snap-in socket fit, so ensure an adequate fit before use. In addition, the punched edge should be on the inside for punched cutouts.The wings of the snap-in connectors must not be mechanically stressed for a long period before use (e.g., due to a pre-locking position). | Clamping units | 5 |
Total number of potentials | 5 | Pin spacing | 4.4?mm?/ 0.173?inches |
Width | 35.5?mm?/ 1.398?inches | Height | 17.5?mm?/ 0.689?inches |
Depth | 39.85?mm?/ 1.569?inches | Use | General mains applications |
Coding | A | Variable coding | No |
Marking | N ? 1 2 3 | Potential Marking | N ? 1 2 3 |
Mating force of a plug-in connection | approx. 20 … 70 N (depending on pole number) | Retention force of a plug-in connection | Locked: > 80 N |
Unmating force of a plug-in connection | Unlocked: approx. 20 … 70 N (depending on pole number) | Number of mating cycles | 200, without resistive load |
Housing sheet thickness | 0.5 … 2?mm?/ 0.02 … 0.079?inches | Mounting type | Snap-in flange |
Protection type | IP40 | Contact type (pluggable connector) | Female connector/socket |
Connector (connection type) | for conductor | Mismating protection | Yes |
Note on mismating protection | AllWINSTA?components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180c.) plugging while laterally staggeredd.) plugging one pole | Locking lever | yes |
Locking of plug-in connection | locking lever | Note on locking system | All connectors for mounted installations (snap-in versions for lighting fixtures or devices, all types of PCB and distribution connectors) are factory-equipped with locking levers to ensure plugs and sockets are securely locked. Additional locking levers are only required for flying leads (plug/socket). |
Note (material data) | Information on material specifications can be found here | Color | white |
Cover color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Clamping spring material | Chrome-nickel spring steel (CrNi) | Contact material | Copper or copper alloy; surface-treated |
Contact plating | Tin | Fire load | 0.261MJ |
Weight | 9g | Processing temperature | -5 … +40?°C |
Continuous operating temperature | -35 … +85?°C | Note on continuous operating temperature | Insulating parts for temperatures ≤ 105 °C |
Product Group | 20 (Winsta) | eCl@ss 10.0 | 27-44-06-02 |
eCl@ss 9.0 | 27-44-06-02 | ETIM 9.0 | EC002566 |
ETIM 8.0 | EC002566 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 50?(50)?pcs | Packaging type | box |
Country of origin | PL | GTIN | 4045454233525 |
Customs tariff number | 8536694040 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | IEC/EN 60664-1 | Rated voltage (III / 3) | 400V |
Rated impulse voltage (III / 3) | 6kV | Rated current | 13A |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Note for the US market | Some versions may also be used for current interruption in accordance with the UL certificate in select applications with currents below 5 A and voltages up to 600 V. For further information, please contact your local sales office. |
Rated voltage (UL 1977) | 600V | Rated current UL 1977 | 12A |
Note on contact resistance | approx. 1 m? of contact resistanceapprox. 0.25 m? contact transition plug/socket | Connection technology | Push-in CAGE CLAMP? |
Actuation type | Operating tool | Nominal cross-section | 1.5 mm2 / 16 AWG |
Solid conductor | 0.25 … 1.5?mm2?/ 22 … 16?AWG | Solid conductor; push-in termination | 0.75 … 1.5?mm2?/ 20 … 16?AWG |
Stranded conductor | 0.25 … 1?mm2?/ 22 … 18?AWG | Fine-stranded conductor | 0.25 … 1.5?mm2?/ 22 … 16?AWG |
Fine-stranded conductor; with insulated ferrule | 0.25 … 0.75?mm2?/ 22 … 20?AWG | Fine-stranded conductor; with uninsulated ferrule | 0.25 … 0.75?mm2?/ 22 … 20?AWG |
Fine-stranded conductor; with ferrule; push-in termination | 0.75?mm2?/ 20?AWG | Strip length | 9?mm?/ 0.35?inches |
Number of poles | 5 | Conductor entry direction to mating direction | 0° |
Specifications may be subject to change without notice
