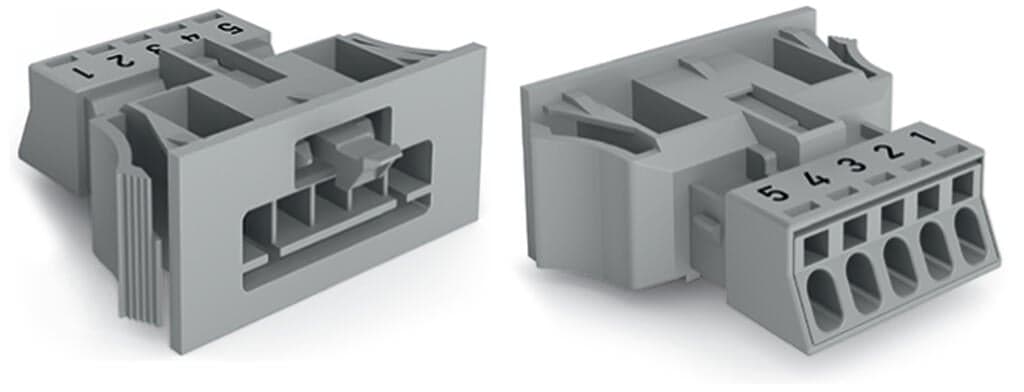

Product Model
890-755
Selling Points
- 1Protected against mismating and maintenance-free: Ensures reliable connections without the need for frequent maintenance.
- 2Customizable coding: Components can be clearly printed and color-coded to meet specific requirements.
- 3High temperature range: Operates within -35 to +85°C for continuous use in various industrial environments.
- 4IP40 protection when mated: Suitable for easily accessible areas with enhanced protection against environmental factors.
- 5Compliant with multiple certifications: Meets standards from Lloyds Register, Det Norske Veritas, and Underwriters Laboratories Inc. for safety and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | The snap-in connectors must be relieved of tensile and transverse forces.A surface finish can influence the edge radius of the cutouts. This may affect the snap-in socket fit, so ensure an adequate fit before use. In addition, the punched edge should be on the inside for punched cutouts.The wings of the snap-in connectors must not be mechanically stressed for a long period before use (e.g., due to a pre-locking position). | Variants: | Other pole markings |
Clamping units | 5 | Total number of potentials | 5 |
Pin spacing | 4.4?mm?/ 0.173?inches | Width | 35.5?mm?/ 1.398?inches |
Height | 17.5?mm?/ 0.689?inches | Depth | 39.85?mm?/ 1.569?inches |
Use | Control technology | Coding | B |
Variable coding | No | Marking | 5 4 3 2 1 |
Potential Marking | 5 4 3 2 1 | Mating force of a plug-in connection | approx. 20 … 70 N (depending on pole number) |
Retention force of a plug-in connection | Locked: > 80 N | Unmating force of a plug-in connection | Unlocked: approx. 20 … 70 N (depending on pole number) |
Number of mating cycles | 200, without resistive load | Housing sheet thickness | 0.5 … 2?mm?/ 0.02 … 0.079?inches |
Mounting type | Snap-in flange | Protection type | IP20; IP40 when mated |
Contact type (pluggable connector) | Male connector/plug | Connector (connection type) | for conductor |
Mismating protection | Yes | Note on mismating protection | AllWINSTA?components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180c.) plugging while laterally staggeredd.) plugging one pole |
Locking lever | yes | Locking of plug-in connection | locking lever |
Note on locking system | All connectors for mounted installations (snap-in versions for lighting fixtures or devices, all types of PCB and distribution connectors) are factory-equipped with locking levers to ensure plugs and sockets are securely locked. Additional locking levers are only required for flying leads (plug/socket). | Note (material data) | Information on material specifications can be found here |
Color | gray | Cover color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Clamping spring material | Chrome-nickel spring steel (CrNi) |
Contact material | Copper or copper alloy; surface-treated | Contact plating | Tin |
Fire load | 0.252MJ | Weight | 8g |
Processing temperature | -5 … +40?°C | Continuous operating temperature | -35 … +85?°C |
Note on continuous operating temperature | Insulating parts for temperatures ≤ 105 °C | eCl@ss 10.0 | 27-44-06-02 |
eCl@ss 9.0 | 27-44-06-02 | ETIM 9.0 | EC002566 |
ETIM 8.0 | EC002566 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 50?(50)?pcs | Packaging type | box |
Country of origin | PL | GTIN | 4055143235969 |
Customs tariff number | 8536694040 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | IEC/EN 60664-1 | Rated voltage (III / 3) | 400V |
Rated impulse voltage (III / 3) | 6kV | Rated current | 16A |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Rated current (note) | 13 A for 3-pole load10 A for 4- and 5-pole load |
Note for the US market | Some versions may also be used for current interruption in accordance with the UL certificate in select applications with currents below 5 A and voltages up to 600 V. For further information, please contact your local sales office. | Rated voltage (UL 1977) | 600V |
Rated current UL 1977 | 12A | Note on contact resistance | approx. 1 m? of contact resistanceapprox. 0.25 m? contact transition plug/socket |
Connection technology | Push-in CAGE CLAMP? | Actuation type | Operating tool |
Nominal cross-section | 1.5 mm2 / 16 AWG | Solid conductor | 0.25 … 1.5?mm2?/ 22 … 16?AWG |
Solid conductor; push-in termination | 0.75 … 1.5?mm2?/ 20 … 16?AWG | Stranded conductor | 0.25 … 1?mm2?/ 22 … 18?AWG |
Fine-stranded conductor | 0.25 … 1.5?mm2?/ 22 … 16?AWG | Fine-stranded conductor; with insulated ferrule | 0.25 … 0.75?mm2?/ 22 … 20?AWG |
Fine-stranded conductor; with uninsulated ferrule | 0.25 … 0.75?mm2?/ 22 … 20?AWG | Fine-stranded conductor; with ferrule; push-in termination | 0.75?mm2?/ 20?AWG |
Strip length | 9?mm?/ 0.35?inches | Number of poles | 5 |
Conductor entry direction to mating direction | 0° |
Specifications may be subject to change without notice
