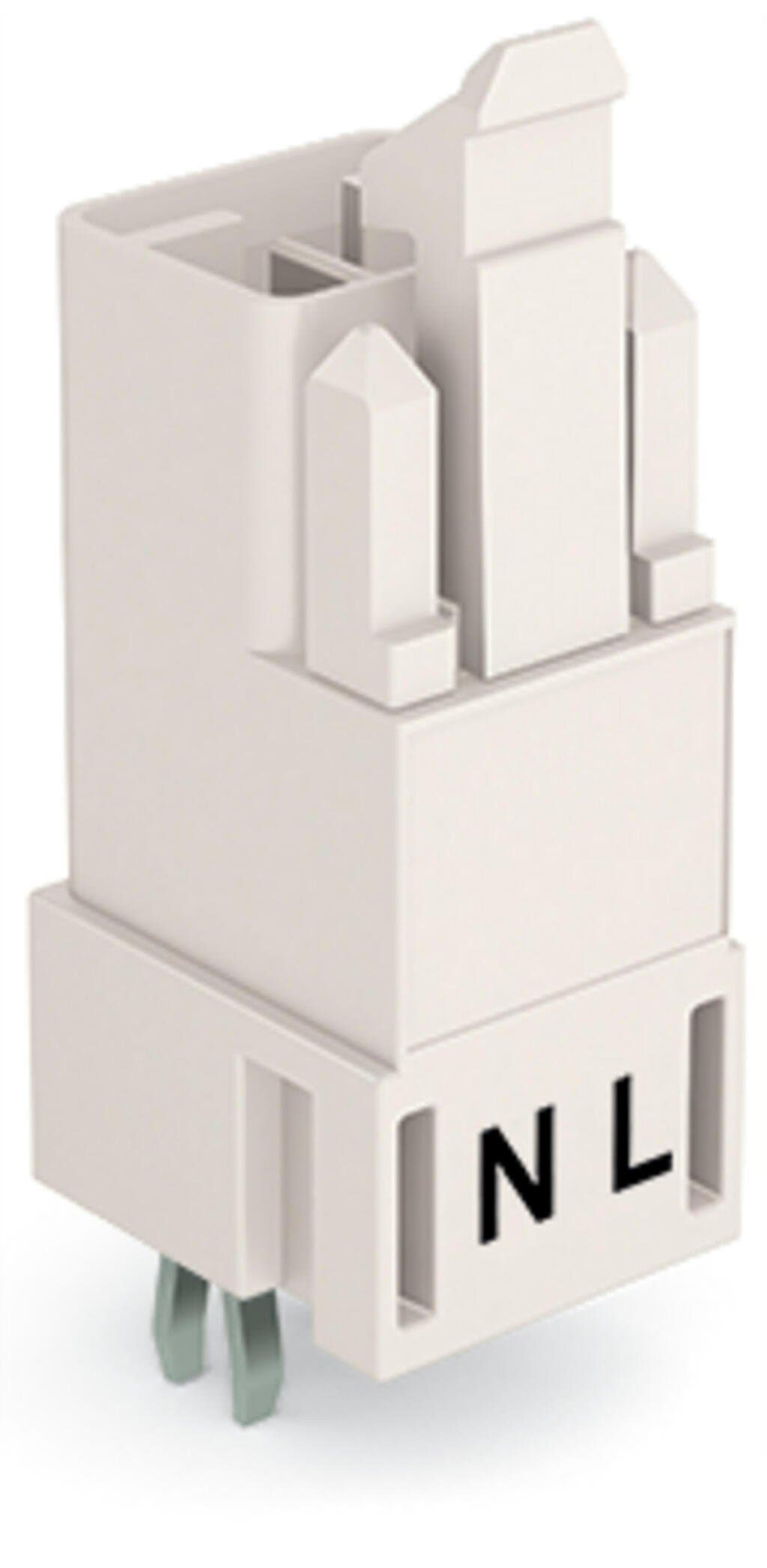

Product Model
890-832
Selling Points
- 1Made from durable Polyamide (PA66) with a flammability class of V0.
- 2Angled design with a locking lever for secure connections and mismating protection.
- 3Compatible with a range of systems, ensuring seamless integration and enhanced performance.
- 4Rated for 16 amperes and 250 volts, suitable for general mains applications.
- 5RoHS compliant without exemption, ensuring environmental responsibility.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Total number of potentials | 2 | Number of levels | 1 |
Pin spacing | 4.4?mm?/ 0.173?inches | Width | 10.4?mm?/ 0.41?inches |
Height | 31.9?mm?/ 1.256?inches | Height from the surface | 28.4?mm?/ 1.118?inches |
Depth | 12.2?mm?/ 0.48?inches | Solder pin length | 3.5mm |
Solder pin dimensions | 1 x 0.8?mm | Drilled hole diameter with tolerance | 1.3(+0.1)mm |
Use | General mains applications | Coding | A |
Variable coding | No | Marking | N L |
Potential Marking | N L | Mating force of a plug-in connection | approx. 20 … 70 N (depending on pole number) |
Retention force of a plug-in connection | Locked: > 80 N | Unmating force of a plug-in connection | Unlocked: approx. 20 … 70 N (depending on pole number) |
Number of mating cycles | 200, without resistive load | Design | straight |
Contact type (pluggable connector) | Male connector/plug | Connector (connection type) | for PCB |
Mismating protection | Yes | Note on mismating protection | AllWINSTA?components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180c.) plugging while laterally staggeredd.) plugging one pole |
Mating direction to the PCB | 90° | Locking lever | yes |
Locking of plug-in connection | locking lever | Note on locking system | All connectors for mounted installations (snap-in versions for lighting fixtures or devices, all types of PCB and distribution connectors) are factory-equipped with locking levers to ensure plugs and sockets are securely locked. Additional locking levers are only required for flying leads (plug/socket). |
PCB contact | THT | Solder pin arrangement | 2 in-line solder pins/pole |
Number of solder pins per potential | 2 | Note (material data) | Information on material specifications can be found here |
Color | white | Cover color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Clamping spring material | Chrome-nickel spring steel (CrNi) |
Contact material | Copper or copper alloy; surface-treated | Contact plating | Tin |
Fire load | 0.052MJ | Weight | 2.4g |
Processing temperature | -5 … +40?°C | Continuous operating temperature | -35 … +85?°C |
Note on continuous operating temperature | Insulating parts for temperatures ≤ 105 °C | Product Group | 20 (Winsta) |
eCl@ss 10.0 | 27-44-06-05 | eCl@ss 9.0 | 27-44-06-05 |
ETIM 9.0 | EC002637 | ETIM 8.0 | EC002637 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 100?pcs |
Packaging type | box | Country of origin | PL |
GTIN | 4050821695578 | Customs tariff number | 8536694040 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
Rated voltage (III / 3) | 250V | Rated impulse voltage (III / 3) | 4kV |
Rated current | 16A | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
Note for the US market | Some versions may also be used for current interruption in accordance with the UL certificate in select applications with currents below 5 A and voltages up to 600 V. For further information, please contact your local sales office. | Rated voltage (UL 1977) | 600V |
Rated current UL 1977 | 14A | Note on contact resistance | approx. 1 m? of contact resistanceapprox. 0.25 m? contact transition plug/socket |
Number of poles | 2 |
