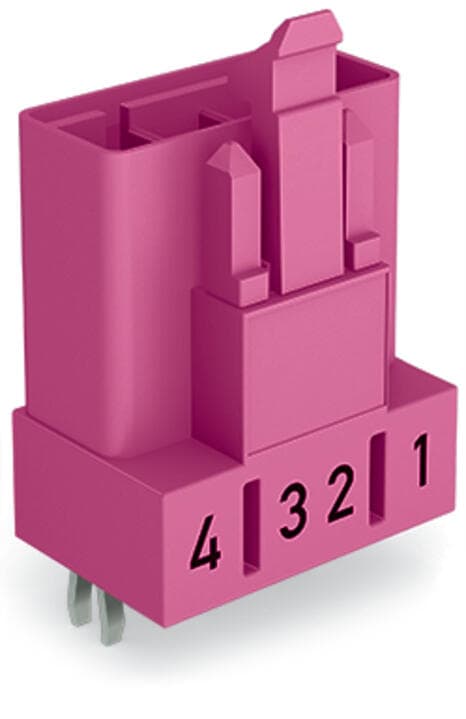

Product Model
890-894
Selling Points
- 1Built to withstand harsh industrial environments, ensuring consistent performance.
- 2Optimized for fast data processing and real-time control.
- 3Supports multiple communication protocols for seamless integration.
- 4Easily expandable to meet growing automation needs.
- 5Intuitive design for easy configuration and monitoring.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Variants: | Other pole markings | Total number of potentials | 4 |
Number of levels | 1 | Pin spacing | 4.4?mm?/ 0.173?inches |
Width | 19.2?mm?/ 0.756?inches | Height | 31.9?mm?/ 1.256?inches |
Height from the surface | 28.4?mm?/ 1.118?inches | Depth | 12.2?mm?/ 0.48?inches |
Solder pin length | 3.5mm | Solder pin dimensions | 1 x 0.8?mm |
Drilled hole diameter with tolerance | 1.3(+0.1)mm | Use | Control technology |
Coding | B | Variable coding | No |
Marking | 4 3 2 1 | Potential Marking | 4 3 2 1 |
Mating force of a plug-in connection | approx. 20 … 70 N (depending on pole number) | Retention force of a plug-in connection | Locked: > 80 N |
Unmating force of a plug-in connection | Unlocked: approx. 20 … 70 N (depending on pole number) | Number of mating cycles | 200, without resistive load100, with resistive load IN= 16 A, tested (1.5 mm2) |
Design | straight | Contact type (pluggable connector) | Male connector/plug |
Connector (connection type) | for PCB | Mismating protection | Yes |
Note on mismating protection | AllWINSTA?components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180c.) plugging while laterally staggeredd.) plugging one pole | Mating direction to the PCB | 90° |
Locking lever | yes | Locking of plug-in connection | locking lever |
Note on locking system | All connectors for mounted installations (snap-in versions for lighting fixtures or devices, all types of PCB and distribution connectors) are factory-equipped with locking levers to ensure plugs and sockets are securely locked. Additional locking levers are only required for flying leads (plug/socket). | PCB contact | THT |
Solder pin arrangement | 2 in-line solder pins/pole | Number of solder pins per potential | 2 |
Note (material data) | Information on material specifications can be found here | Color | pink |
Cover color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Clamping spring material | Chrome-nickel spring steel (CrNi) | Contact material | Copper or copper alloy; surface-treated |
Contact plating | Tin | Fire load | 0.077MJ |
Weight | 4g | Processing temperature | -5 … +40?°C |
Continuous operating temperature | -35 … +85?°C | Note on continuous operating temperature | Insulating parts for temperatures ≤ 105 °C |
Product Group | 20 (Winsta) | eCl@ss 10.0 | 27-44-06-05 |
eCl@ss 9.0 | 27-44-06-05 | ETIM 9.0 | EC002637 |
ETIM 8.0 | EC002637 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 50?pcs | Packaging type | box |
Country of origin | PL | GTIN | 4050821696148 |
Customs tariff number | 8536694040 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | IEC/EN 60664-1 | Rated voltage (III / 3) | 250V |
Rated impulse voltage (III / 3) | 4kV | Rated current | 16A |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Rated current (note) | 13 A for 3-pole load10 A for 4-pole load |
Note for the US market | Some versions may also be used for current interruption in accordance with the UL certificate in select applications with currents below 5 A and voltages up to 600 V. For further information, please contact your local sales office. | Rated voltage (UL 1977) | 600V |
Rated current UL 1977 | 12A | Note on contact resistance | approx. 1 m? of contact resistanceapprox. 0.25 m? contact transition plug/socket |
Number of poles | 4 |
Specifications may be subject to change without notice
