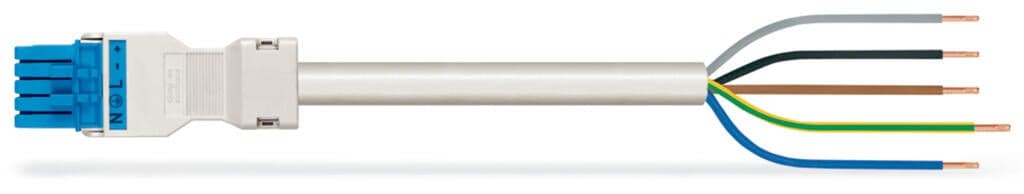

Product Model
891-8985/116-102
Selling Points
- 1Quick and Easy Installation: Push-in termination for fast and efficient connections.
- 2Versatile Applications: Suitable for DALI, lighting management, and industrial cable assemblies.
- 3High-Quality Materials: Constructed with durable H05Z1Z1-F 5G 1.5 mm² cable.
- 4Compact Design: 5-pole socket-free end connector for space-saving installations.
- 5Compliant with Standards: Meets EN 60998 standards for safe and reliable connections.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | Cables with a different fire class can be found in the eShop. | Total number of potentials | 5 |
PE function | Preceding PE contact | Conductor preparation | ultrasonically tip-bonded |
Pin spacing | 4.4?mm?/ 0.173?inches | Width | 26.7?mm?/ 1.051?inches |
Height | 15.8?mm?/ 0.622?inches | Total length | 1m |
Use | DALI, Lighting Management | Coding | I |
Variable coding | No | Marking | N ? L - + |
Potential Marking | N ? L - + | Mating force of a plug-in connection | approx. 20 … 70 N (depending on pole number) |
Retention force of a plug-in connection | when locked: > 80N | Unmating force of a plug-in connection | when unlocked: approx. 20 … 70 N (depending on pole number) |
Number of mating cycles | 200, without resistive load | Connection type | Socket - Free end |
Type of pre-assembled cable | Connecting cable | Cable type | H05Z1Z1-F 5G1.5 |
Protection type | IP40 | Mismating protection | Yes |
Note on mismating protection | AllWINSTA?components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180c.) plugging while laterally staggeredd.) plugging one pole | Locking lever | Can be retrofitted |
Locking of plug-in connection | locking lever | Note on locking system | All connectors for mounted installations (snap-in versions for lighting fixtures or devices, all types of PCB and distribution connectors) are factory-equipped with locking levers to ensure plugs and sockets are securely locked. Additional locking levers are only required for flying leads (plug/socket). |
Note (material data) | Information on material specifications can be found here | Color | blue |
Insulation material (main housing) | Polyamide (PA66) | Fire class per EN 50575 | Eca |
Contact material | Copper or copper alloy; surface-treated | Contact plating | Tin |
Fire load | 29.914MJ | Connector color | blue |
Strain relief color | white | Sheathed cable color | white |
Printing color of sheathed cable | black | Halogen-free | Yes |
Silicon-free | Yes | Sheath material | Halogen-free |
Rubber cable | No | Weight | 164.3g |
Copper weight of the pipe | 0.072kg/m | Processing temperature | -5 … +40?°C |
Continuous operating temperature | -35 … +85?°C | Note on continuous operating temperature | Cable for temperatures ≤ 70 °C (including halogen-free)Insulating parts for temperatures ≤ 105 °C |
eCl@ss 10.0 | 27-44-06-04 | eCl@ss 9.0 | 27-44-06-04 |
ETIM 9.0 | EC002587 | ETIM 8.0 | EC002587 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | unpacked | Country of origin | PL |
GTIN | 4055143399913 | Customs tariff number | 8544429090 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
Rated voltage (III / 3) | 400V | Rated impulse voltage (III / 3) | 6kV |
Rated current | 16A | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
Note on contact resistance | approx. 1 m? of contact resistanceapprox. 0.25 m? contact transition plug/socket | Strip length | 9?mm?/ 0.35?inches |
Number of poles | 5 | Wire cross-section | 1.5mm2 |
Strip length (outer insulation) | 45mm |
Specifications may be subject to change without notice
