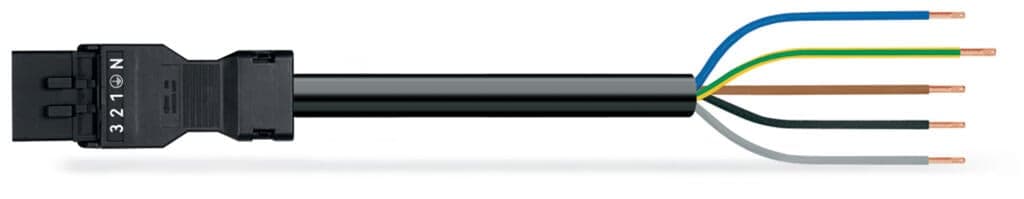

Product Model
891-8995/216-401
Selling Points
- 1Pre-assembled for easy installation.
- 25-pole design for versatile connectivity.
- 3H05Z1Z1-F 5G 1.5 mm² cable for reliable performance.
- 4Plug/open-ended connection type for flexibility.
- 5Black color for easy identification in any setup.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | Cables with a different fire class can be found in the eShop. | Total number of potentials | 5 |
Conductor preparation | ultrasonically tip-bonded | Pin spacing | 4.4?mm?/ 0.173?inches |
Width | 26.7?mm?/ 1.051?inches | Height | 15.8?mm?/ 0.622?inches |
Total length | 4m | Use | General mains applications |
Coding | A | Variable coding | No |
Marking | N ? 1 2 3 | Potential Marking | N ? 1 2 3 |
Mating force of a plug-in connection | approx. 20 … 70 N (depending on pole number) | Retention force of a plug-in connection | when locked: > 80N |
Unmating force of a plug-in connection | when unlocked: approx. 20 … 70 N (depending on pole number) | Number of mating cycles | 200, without resistive load |
Connection type | Plug - Free end | Type of pre-assembled cable | Connecting cable |
Cable type | H05Z1Z1-F 5G1.5 | Protection type | IP20; IP40 when mated |
Mismating protection | Yes | Note on mismating protection | AllWINSTA?components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180c.) plugging while laterally staggeredd.) plugging one pole |
Locking lever | Can be retrofitted | Locking of plug-in connection | locking lever |
Note on locking system | All connectors for mounted installations (snap-in versions for lighting fixtures or devices, all types of PCB and distribution connectors) are factory-equipped with locking levers to ensure plugs and sockets are securely locked. Additional locking levers are only required for flying leads (plug/socket). | Note (material data) | Information on material specifications can be found here |
Color | black | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire class per EN 50575 | Eca |
Contact material | Copper or copper alloy; surface-treated | Contact plating | Tin |
Fire load | 120.043MJ | Connector color | black |
Strain relief color | black | Sheathed cable color | black |
Printing color of sheathed cable | white | Halogen-free | Yes |
Silicon-free | Yes | Sheath material | Halogen-free |
Rubber cable | No | Weight | 627.6g |
Copper weight of the pipe | 0.072kg/m | Processing temperature | -5 … +40?°C |
Continuous operating temperature | -35 … +85?°C | Note on continuous operating temperature | Cable for temperatures ≤ 70 °C (including halogen-free)Insulating parts for temperatures ≤ 105 °C |
eCl@ss 10.0 | 27-44-06-04 | eCl@ss 9.0 | 27-44-06-04 |
ETIM 9.0 | EC002587 | ETIM 8.0 | EC002587 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | unpacked | Country of origin | PL |
GTIN | 4050821119975 | Customs tariff number | 8544429090 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
Rated voltage (III / 3) | 400V | Rated impulse voltage (III / 3) | 6kV |
Rated current | 13A | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
Note on contact resistance | approx. 1 m? of contact resistanceapprox. 0.25 m? contact transition plug/socket | Strip length | 9?mm?/ 0.35?inches |
Number of poles | 5 | Wire cross-section | 1.5mm2 |
Strip length (outer insulation) | 45mm |
Specifications may be subject to change without notice
