Product Model

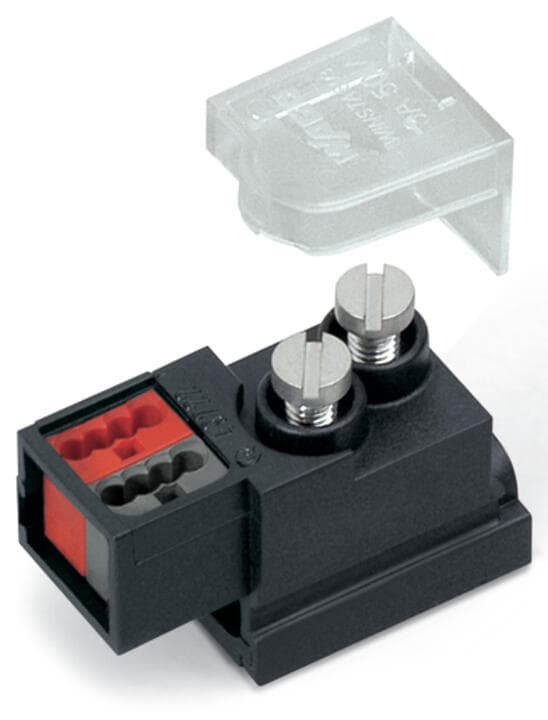

893-121
Selling Points
- 1Error-Free Installation: The WAGO 893-121 features mechanical coding and color coding to ensure error-free installation of components.
- 2Mismating Protection: 100% protected against mismating, including plugging different numbers of poles, rotated 180°, or laterally staggered.
- 3IP20 Protection: Offers protection against contact with live components in accordance with protection type IP20 (When mated: IP2xC).
- 4Flexible Connectivity: Suitable for flat cable 2 x 1.5 mm², with convenient insulation displacement technology (IDC) for easy connection at any location.
- 5High-Quality Materials: Made from polyamide (PA66) with a flammability class per UL94 V0 and contact material copper or copper alloy, surface-treated.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 8 | Width | 17.7?mm?/ 0.697?inches |
Height | 23.45?mm?/ 0.923?inches | Depth | 36.8?mm?/ 1.449?inches |
Technology | KNX | Use | KNX |
Variable coding | No | Marking | plain |
Retention force of a plug-in connection | When locked: > 80 N | Number of mating cycles | 200 |
Protection type | IP20; When mated: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!) | Suitable | for flat cable 2 x 1.5 mm2 |
Mismating protection | Yes | Note on mismating protection | AllWINSTA?components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180c.) plugging while laterally staggeredd.) plugging one pole |
Note (material data) | Information on material specifications can be found here | Color | black |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Contact material | Copper or copper alloy; surface-treated | Contact plating | Tin |
Weight | 16g | Processing temperature | -5 … +40?°C |
Continuous operating temperature | -35 … +85?°C | Note on continuous operating temperature | Cable for temperatures ≤ 70 °C (including halogen-free)Flat cable for temperatures –15 °C to ≤ 70 °C (including halogen-free)Insulating parts for temperatures ≤ 105 °C |
Product Group | 20 (Winsta) | eCl@ss 10.0 | 27-44-06-01 |
eCl@ss 9.0 | 27-44-06-01 | ETIM 9.0 | EC002588 |
ETIM 8.0 | EC002588 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 25?pcs | Packaging type | box |
Country of origin | CH | GTIN | 4045454267391 |
Customs tariff number | 8536698000 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | IEC/EN 60664-1 | Rated voltage (III / 3) | 50V |
Rated impulse voltage (III / 3) | 0.8kV | Rated current | 3A |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Note on contact resistance | approx. 1 m? of contact resistanceapprox. 0.25 m? contact transition plug/socket |
Connection technology | IDC connection | Actuation type | Operating tool |
Strip length | 5 … 6?mm?/ 0.2 … 0.24?inches | Number of poles | 2 |
Specifications may be subject to change without notice
