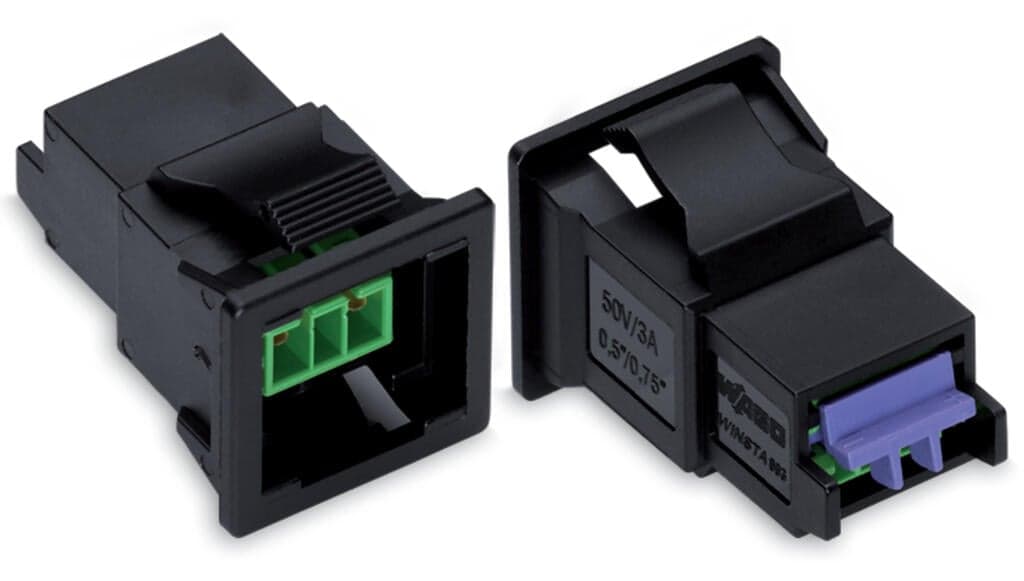

Product Model
893-2002
Selling Points
- 1Efficient 2-pole connection for KNX applications.
- 2Green color coding for easy identification.
- 3Snap-in design for quick and easy installation.
- 4No locking lever for smooth and secure connections.
- 5RoHS compliant for environmental sustainability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | The snap-in connectors must be relieved of tensile and transverse forces.A surface finish can influence the edge radius of the cutouts. This may affect the snap-in socket fit, so ensure an adequate fit before use. In addition, the punched edge should be on the inside for punched cutouts.The wings of the snap-in connectors must not be mechanically stressed for a long period before use (e.g., due to a pre-locking position). | Clamping units | 2 |
Total number of potentials | 2 | Width | 19.6?mm?/ 0.772?inches |
Height | 19.6?mm?/ 0.772?inches | Depth | 29.5?mm?/ 1.161?inches |
Technology | KNX | Use | KNX |
Coding | E | Variable coding | No |
Marking | 1+ 2- | Potential Marking | 1+ 2- |
Mating force of a plug-in connection | approx. 10 … 15 N | Retention force of a plug-in connection | Locked: > 80 N |
Unmating force of a plug-in connection | Unlocked: approx. 15 … 20 N | Number of mating cycles | 200 |
Housing sheet thickness | 0.5 … 2?mm?/ 0.02 … 0.079?inches | Mounting type | Snap-in flange |
Protection type | IP20; Only when mated and secured with a strain relief housing (These compact connectors are not designed for use in open, easily accessible areas.) | Contact type (pluggable connector) | Female connector/socket |
Connector (connection type) | for conductor | Mismating protection | Yes |
Note on mismating protection | AllWINSTA?components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180c.) plugging while laterally staggeredd.) plugging one pole | Locking lever | No |
Locking of plug-in connection | locking lever | Note (material data) | Information on material specifications can be found here |
Color | green | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Clamping spring material | Chrome-nickel spring steel (CrNi) |
Contact material | Copper alloy; surface-treated | Contact plating | Tin |
Weight | 3.6g | Processing temperature | -5 … +40?°C |
Continuous operating temperature | -35 … +85?°C | Note on continuous operating temperature | Insulating parts for temperatures ≤ 105 °C |
Product Group | 20 (Winsta) | eCl@ss 10.0 | 27-44-06-02 |
eCl@ss 9.0 | 27-44-06-02 | ETIM 9.0 | EC002566 |
ETIM 8.0 | EC002566 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 50?pcs | Packaging type | box |
Country of origin | CH | GTIN | 4045454420130 |
Customs tariff number | 8536694040 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | IEC/EN 60664-1 | Rated voltage (III / 3) | 50V |
Rated impulse voltage (III / 3) | 0.8kV | Rated current | 3A |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Note on contact resistance | Approx. 3 m? contact resistance |
Connection technology | PUSH WIRE? | Actuation type | Push-in |
Conductor diameter | 0.8?mm | Strip length | 9?mm?/ 0.35?inches |
Number of poles | 2 | Conductor entry direction to mating direction | 0° |
Specifications may be subject to change without notice
