Product Model
894-8992/023-507
Selling Points

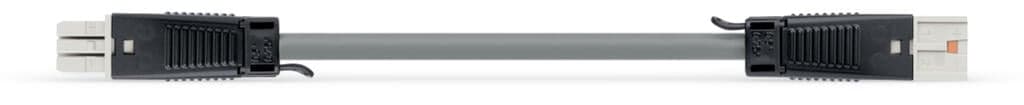

- 1Pre-assembled interconnecting cable for KNX protocol: Ideal for linking different equipment within a building system.
- 22-pole connections with F coding: Ensures secure and efficient power supply.
- 33A rated current: Supports high-performance applications without overheating.
- 4Halogen-free materials: Reduces environmental pollutants and increases fire safety.
- 5Mechanical protection against mismating: Prevents incorrect connections and ensures reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | Cables with a different fire class can be found in the eShop. | Total number of potentials | 2 |
Width | 14.1?mm?/ 0.555?inches | Height | 11.1?mm?/ 0.437?inches |
Total length | 5m | Technology | KNX |
Use | KNX | Coding | F |
Variable coding | No | Marking | 1+ 2- |
Potential Marking | 1+ 2- | Mating force of a plug-in connection | approx. 10 … 15 N |
Retention force of a plug-in connection | when locked: > 80N | Unmating force of a plug-in connection | Unlocked: approx. 15 … 20 N |
Number of mating cycles | 200 | Connection type | Socket - Plug |
Type of pre-assembled cable | Interconnecting cable | Cable type | Y-H(St)Hh 1x2x0.8 |
Protection type | IP20; Only when mated and secured with a strain relief housing (These compact connectors are not designed for use in open, easily accessible areas.) | Mismating protection | Yes |
Note on mismating protection | AllWINSTA?components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180c.) plugging while laterally staggeredd.) plugging one pole | Locking of plug-in connection | none |
Note (material data) | Information on material specifications can be found here | Color | gray |
Insulation material (main housing) | Polyamide (PA66) | Fire class per EN 50575 | Dca |
Contact material | Copper alloy; surface-treated | Contact plating | Tin |
Fire load | 5.562MJ | Connector color | light gray |
Strain relief color | black | Sheathed cable color | gray |
Printing color of sheathed cable | black | Halogen-free | Yes |
Silicon-free | Yes | Sheath material | Halogen-free |
Rubber cable | No | Weight | 185g |
Copper weight of the pipe | 0.01kg/m | Processing temperature | -5 … +40?°C |
Continuous operating temperature | -35 … +85?°C | Note on continuous operating temperature | Cable for temperatures ≤ 70 °C (including halogen-free)Insulating parts for temperatures ≤ 105 °C |
eCl@ss 10.0 | 27-44-06-04 | eCl@ss 9.0 | 27-44-06-04 |
ETIM 9.0 | EC002587 | ETIM 8.0 | EC002587 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | unpacked | Country of origin | PL |
GTIN | 4050821473480 | Customs tariff number | 8544429090 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
Rated voltage (III / 3) | 50V | Rated impulse voltage (III / 3) | 0.8kV |
Rated current | 3A | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
Note on contact resistance | Approx. 3 m? contact resistance | Conductor diameter | 0.8?mm |
Number of poles | 2 |
