Product Model
895-1602
Selling Points

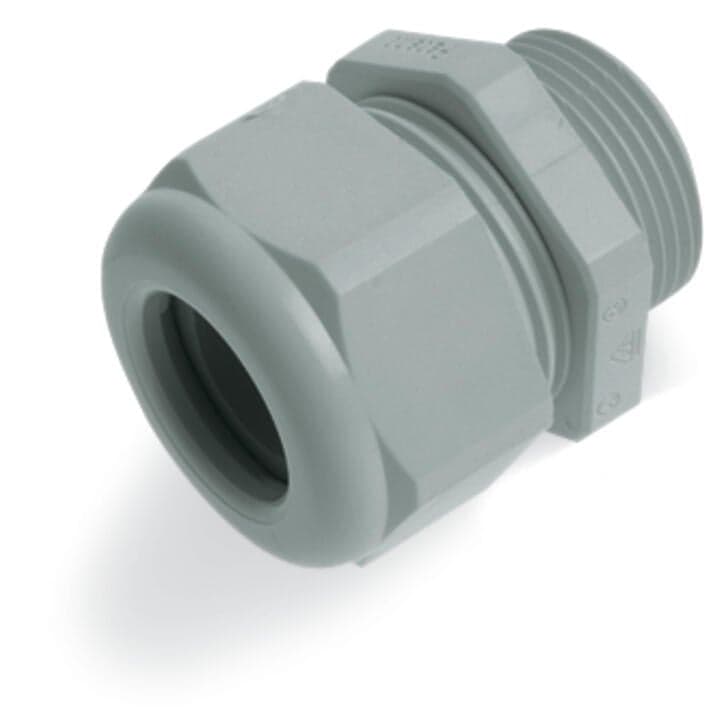

- 1Secure Electrical Connections: The WAGO 895-1602 cable fitting provides a reliable and secure connection with its M25 x 1.5 design.
- 2Wide Clamping Range: Suitable for cables with a diameter of 9 to 16 mm, ensuring versatility in various electrical applications.
- 3RoHS Compliant: Meets RoHS compliance standards, ensuring environmental safety and regulatory adherence.
- 4Durable Construction: Made from high-quality plastic with an O-ring gasket for added durability and resistance to environmental factors.
- 5Easy Installation: Designed for fast and error-free installation, reducing time and costs in electrical projects.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note (material data) | Information on material specifications can be found here | Color | black |
Insulation material (main housing) | Polyamide 66 (PA 66) | Flammability class per UL94 | V0 |
Weight | 26.8g | Processing temperature | -5 … +40?°C |
Continuous operating temperature | -35 … +85?°C | Note on continuous operating temperature | Insulating parts for temperatures ≤ 105 °C |
Product Group | 20 (Winsta) | eCl@ss 10.0 | 27-14-44-32 |
eCl@ss 9.0 | 27-14-44-32 | ETIM 9.0 | EC000441 |
ETIM 8.0 | EC000441 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 5?pcs | Packaging type | box |
Country of origin | CH | GTIN | 4055143931014 |
Customs tariff number | 3926909985 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
