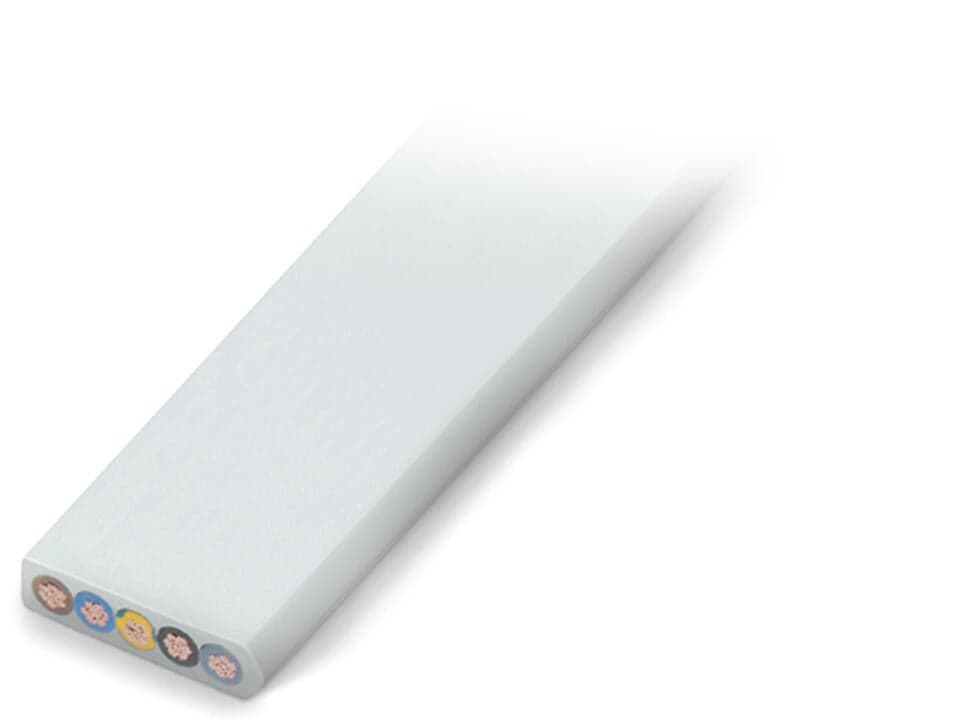

Product Model
897-1052
Selling Points
- 1Halogen-Free Insulation: Ensures safety and reduces environmental impact.
- 2High Current Capacity: Supports up to 5G 10 mm², making it suitable for demanding applications.
- 3Durable Construction: Built with polyamide 66 (PA 66) for long-lasting performance.
- 4Light Gray Color: Easy to identify and integrate into various systems.
- 5Compliant with Standards: Meets UL94 V0 and EN 50575 fire safety standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 38.6?mm?/ 1.52?inches | Height | 10.1?mm?/ 0.39?inches |
Variable coding | No | Mismating protection | No |
Note (material data) | Information on material specifications can be found here | Color | light gray |
Fire class per EN 50575 | B2ca | Fire load | 6.624MJ |
Halogen-free | Yes | Silicon-free | Yes |
Rubber cable | No | Weight | 845g |
Copper weight of the pipe | 0.48kg/m | Processing temperature | 5 … 40?°C |
Continuous operating temperature | -25 … +90?°C | Note on continuous operating temperature | Insulating parts for temperatures ≤ 105 °C |
Product Group | 20 (Winsta) | eCl@ss 10.0 | 27-06-01-06 |
eCl@ss 9.0 | 27-06-20-02 | ETIM 9.0 | EC003250 |
ETIM 8.0 | EC003250 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | box |
Country of origin | CH | GTIN | 4045454006235 |
Customs tariff number | 8544429090 | RoHS Compliance Status | Compliant,No Exemption |
Rated voltage | 0.6 / 1?kV | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
Number of poles | 5 | Wire cross-section | 10mm2 |
Specifications may be subject to change without notice
