Product Model

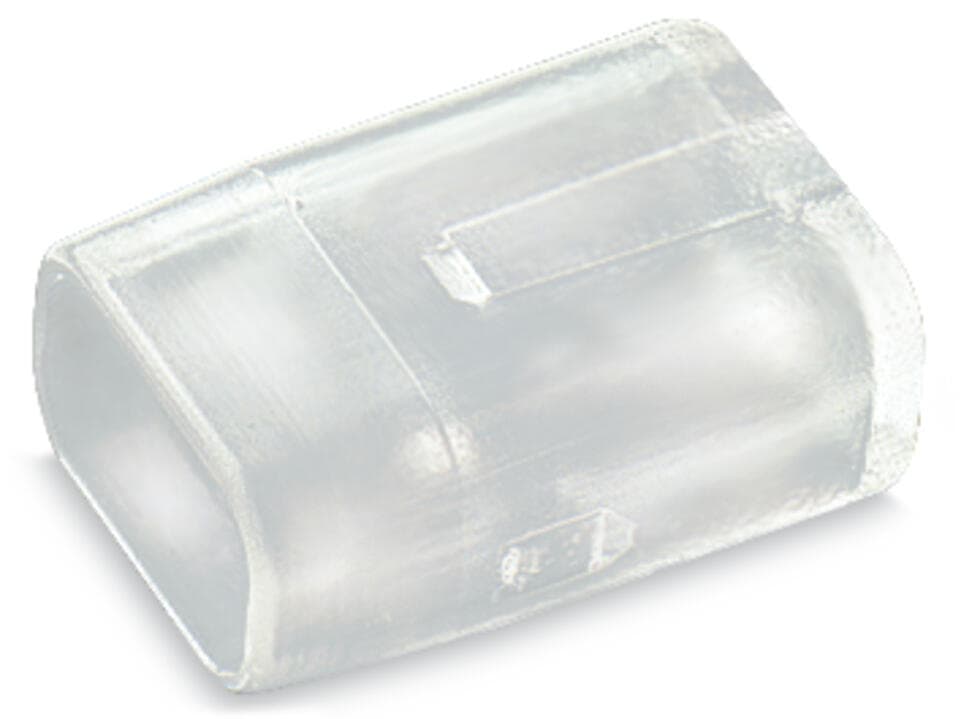

897-120
Selling Points
- 1Fast Installation: Pluggable connection system saves time and reduces labor.
- 2High Safety Standards: Meets UL94 V0 flammability class and RoHS compliance.
- 3Durable Design: Suitable for continuous operating temperatures up to +85°C.
- 4Easy Handling: Transparent color for easy identification and handling.
- 5Versatile Application: Compatible with flat cables 2 x 1.5 mm² for various electrical needs.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Variable coding | No | Suitable | for flat cable 2 x 1.5 mm2 |
Note (material data) | Information on material specifications can be found here | Color | transparent |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.072MJ | Weight | 2.8g |
Processing temperature | -5 … +40?°C | Continuous operating temperature | -35 … +85?°C |
Note on continuous operating temperature | Insulating parts for temperatures ≤ 105 °C | Product Group | 20 (Winsta) |
eCl@ss 10.0 | 27-44-06-92 | eCl@ss 9.0 | 27-44-06-92 |
ETIM 9.0 | EC002863 | ETIM 8.0 | EC002863 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 10?pcs |
Packaging type | box | Country of origin | CH |
GTIN | 4045454205119 | Customs tariff number | 8547200000 |
RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
