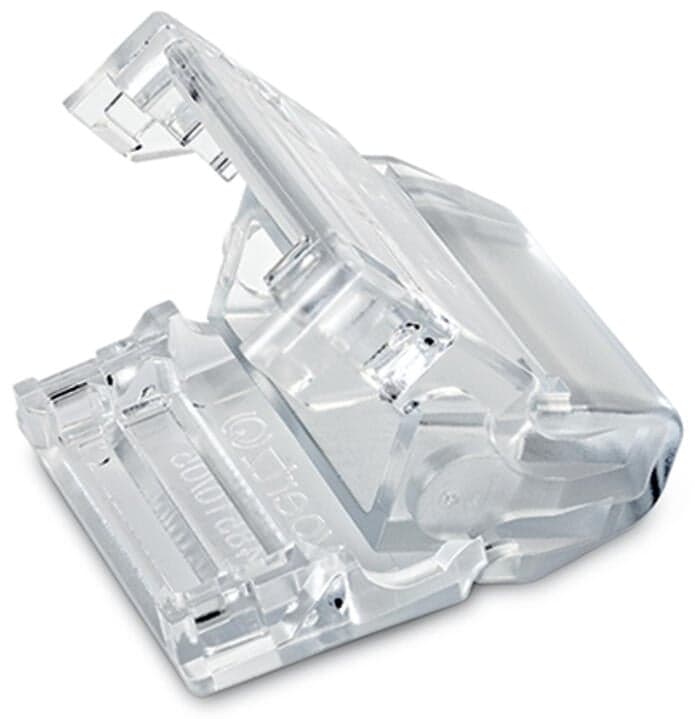

Product Model
897-250
Selling Points
- 1Flexible Installation: Connect and tap off flat cables at any time and location without cutting.
- 2High Reliability: Designed for 250 V/4 kV/3 16 A applications, ensuring robust electrical connections.
- 3Transparent Plastic: Made from durable transparent plastic for easy visibility and inspection.
- 4Easy to Use: Snap-in device connection with CAGE CLAMP technology for secure and efficient assembly.
- 5Versatile Compatibility: Suitable for flat cables with a diameter of 3.8 - 8.2 mm, accommodating various wiring needs.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Variable coding | No | Suitable | for flat cable 5 x 2.5 mm2 |
Note (material data) | Information on material specifications can be found here | Color | transparent |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.21MJ | Weight | 7g |
Processing temperature | -5 … +40?°C | Continuous operating temperature | -35 … +85?°C |
Note on continuous operating temperature | Insulating parts for temperatures ≤ 105 °C | Product Group | 20 (Winsta) |
eCl@ss 10.0 | 27-44-06-92 | eCl@ss 9.0 | 27-44-06-92 |
ETIM 9.0 | EC002863 | ETIM 8.0 | EC002863 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 25?pcs |
Packaging type | box | Country of origin | CH |
GTIN | 4055143572866 | Customs tariff number | 8547200000 |
RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
