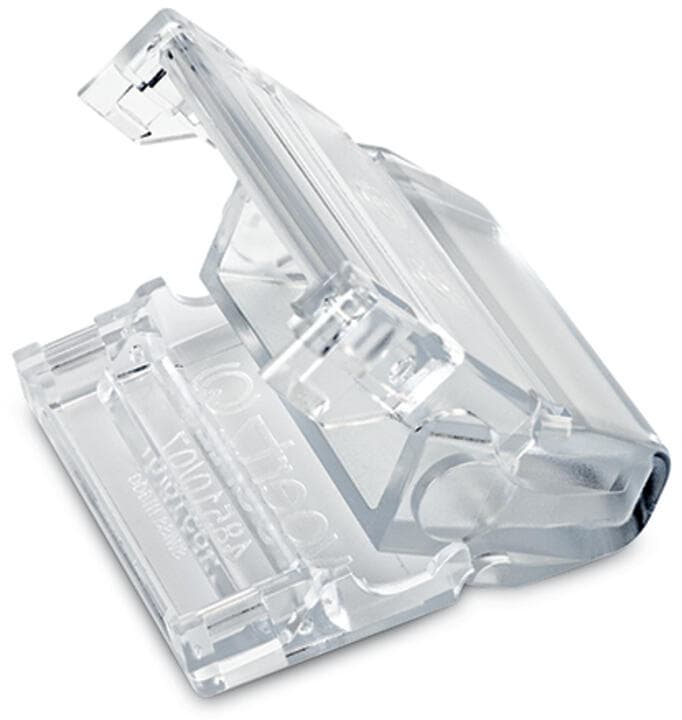

Product Model
897-260
Selling Points
- 1Error-Free Installation: The WAGO 897-260 ensures seamless electrical installation with its pluggable connection system.
- 2Transparent Plastic: Made from transparent polyamide (PA66) for easy visibility and durability.
- 3Wide Operating Range: Suitable for temperatures from -35°C to +85°C, ensuring reliable performance in various environments.
- 4Fast and Secure: Saves time with no wiring required at the construction site, providing a fast and secure installation process.
- 5Compliant and Safe: Compliant with RoHS and UL94 V0 flammability standards, ensuring safety and environmental compliance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Variable coding | No | Suitable | for flat cable 5 x 2.5 mm2 + 2 x 1.5 mm2 |
Note (material data) | Information on material specifications can be found here | Color | transparent |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.288MJ | Weight | 16.8g |
Processing temperature | -5 … +40?°C | Continuous operating temperature | -35 … +85?°C |
Note on continuous operating temperature | Insulating parts for temperatures ≤ 105 °C | Product Group | 20 (Winsta) |
eCl@ss 10.0 | 27-44-06-92 | eCl@ss 9.0 | 27-44-06-92 |
ETIM 9.0 | EC002863 | ETIM 8.0 | EC002863 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 25?pcs |
Packaging type | box | Country of origin | CH |
GTIN | 4055143385992 | Customs tariff number | 3926909985 |
RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
