Product Model
899-681/147-000
Selling Points
- 1Reliable Connectivity Solutions: Ensures secure and stable connections in various applications.
- 2High-Quality Design: Built with durable materials for long-lasting performance.
- 3Versatile Compatibility: Compatible with other WAGO products for seamless integration.
- 4Efficient Installation: Intuitive marking and easy-to-use design for convenient setup.
- 5Error-Free Mating: Protection against mismating eliminates installation errors.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 190?mm?/ 7.48?inches | Height | 30?mm?/ 1.181?inches |

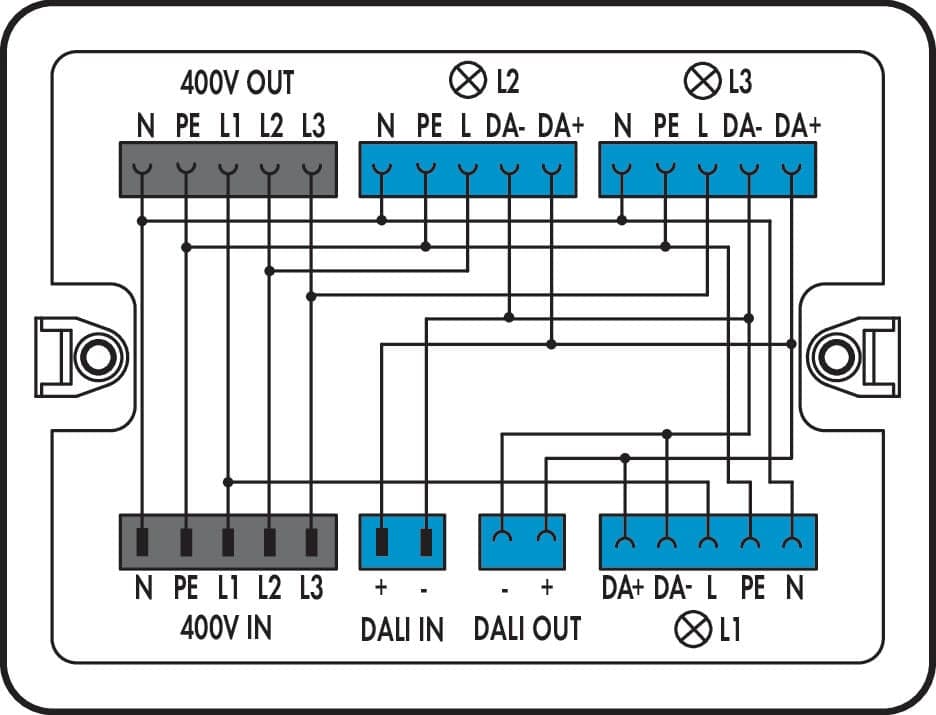

Depth | 145?mm?/ 5.709?inches | Internal wiring | 2.5mm2 |
Use | DALI, Lighting Management | Coding | A |
Coding 2 | I | Mounting type | Wall, screw mount |
Protection type | IP20; When mated: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!) | Mismating protection | Yes |
Note on mismating protection | AllWINSTA?components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180c.) plugging while laterally staggeredd.) plugging one pole | Locking of plug-in connection | locking lever |
Note (material data) | Information on material specifications can be found here | Color | white |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Contact material | Copper or copper alloy; surface-treated | Contact plating | Tin |
Fire load | 11.065MJ | Weight | 369g |
Processing temperature | -5 … +40?°C | Continuous operating temperature | -35 … +85?°C |
Note on continuous operating temperature | Insulating parts for temperatures ≤ 105 °C | ETIM 9.0 | EC002567 |
ETIM 8.0 | EC002567 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4055143941754 |
Customs tariff number | 8536698000 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | IEC/EN 60664-1 | Rated voltage (III / 3) | 400V |
Rated impulse voltage (III / 3) | 6kV | Rated current | 20A |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Ratings per 2 | IEC/EN 60664-1 |
Rated voltage (III/3) 2 | 250V | Rated surge voltage (III/3) 2 | 4kV |
Rated current 2 | 16A | Note on contact resistance | approx. 1 m? contact resistanceapprox. 0.25 m? contact transition (plug/socket) |
Connection type 1 | Input | Connection type 2 | Output |
Connection type 3 | Input | Connection type 4 | Output |
Specifications may be subject to change without notice
