Product Model

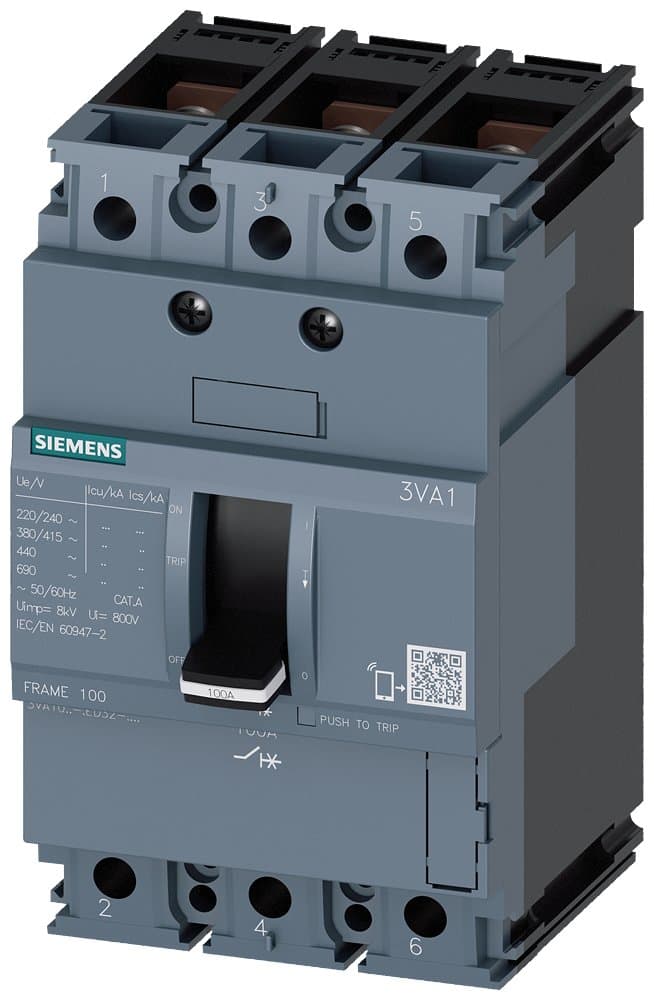

3VA1063-4ED32-0AA0
Selling Points
- 1High breaking capacity of 36 kA at 415 V for 3-pole applications.
- 2Thermal-magnetic trip units for efficient overload and short-circuit protection.
- 3Flexible communication options via various bus systems for seamless integration.
- 4Compact design with a mounting depth of 70 mm and cover size of 45 mm.
- 5Modular and easy-to-fit internal accessories for diverse functions and applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Rated Service Interrupting Capacity Ics(kA):@400V or 415V | 36 | Rated Voltage(V): | 690 |
Number of Poles: | 3P | Description | 3VA1S100 R63 TM210 F/3P; 3VA1_100 dimensions; Rated current 63A; Interrupting S:36kA; Trip unit TM210; |
Mounting Method: | F: Fixed Mounting | Trip Unit: (If required is not in the list, click reset, then select the trip unit) | TM210 [LI fixed, line protection] |
Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 36 | Interrupting Rating: | S:36kA |
Rated Current In(A): | 63 | Specifications: | 100 [16-100A] |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | N | AL | N |
Model Number | 3VA1063-4ED32-0AA0 |
Specifications may be subject to change without notice
