The circuit breaker VT160 has a standard switching capacity of N Icu = 35kA, 3-pole at 415/440 VAC. It is designed for system protection with a thermal-magnetic tripping device. The rated current IR is 40A, providing overload protection, and the short-circuit protection is rated at II = 500A. It features an undervoltage release tripping device for 220 VAC. There are no auxiliary switches, and the terminals are located on the front of the plug-in section.

Circuit breaker 3VA1 IEC frame 100 Interrupting rating class B Icu=16 kA @ 415 V 3-pole

Circuit breaker 3VA1 IEC frame 160 Interrupting rating class N Icu=25 kA @ 415 V 4-pole

Circuit Breaker 3VA2 IEC Frame 160 Interrupting Capacity Rating L Icu=150kA @ 415V 4-pole, System Protection ETU860, LSIG, In=63A Overload Protection Ir=25A...63A Short Circuit Protection Isd=0.6..10x In, Ii=1.5..12x In Neutral Line Protection Adjustable (OFF, up to 160%)

Circuit Breaker 3VA2 IEC Frame 250 Interrupting Rating Class H Icu=85kA @ 415V 4-pole

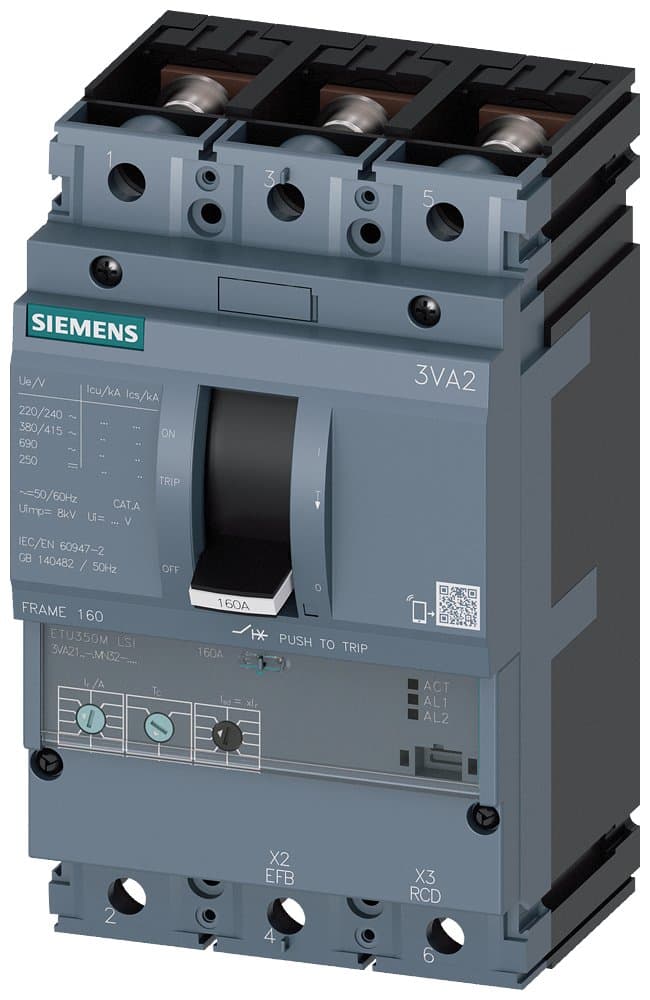

Circuit Breaker 3VA2 IEC Frame 160 Interrupting Rating Class M Icu=55 kA @ 415 V 3-pole, Motor Protection ETU350M, LSI, In=100A Overload Protection Ir=40A...100A Short Circuit Protection Isd=3...15 x Ir, Ii=15 x In Terminal Connectors: Screw Flattop

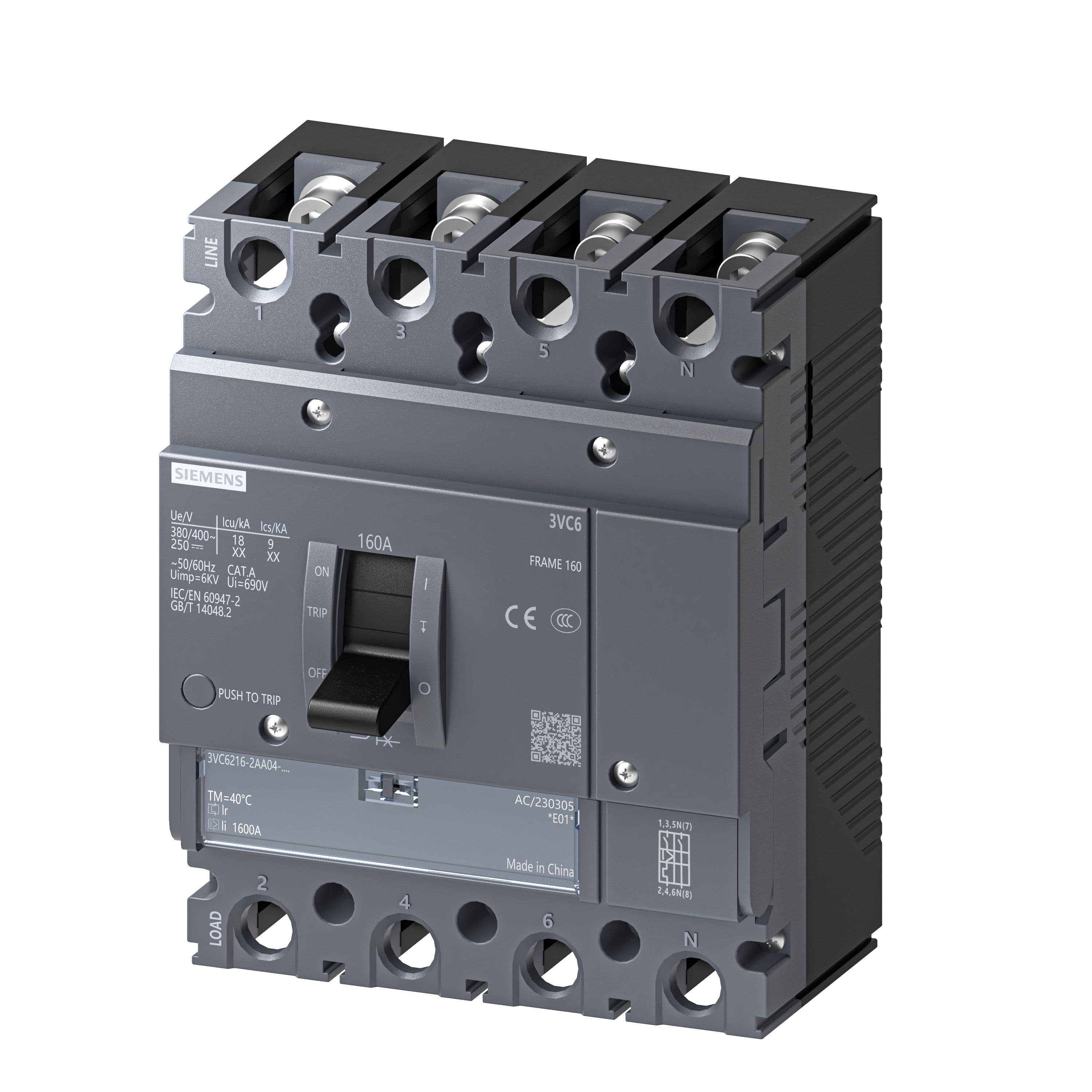

The Siemens 3VC6 molded case circuit breaker series, 3VC6 160 18KA TMF 63A 4P.

Siemens 3VT8 Series Molded Case Circuit Breakers and Accessories

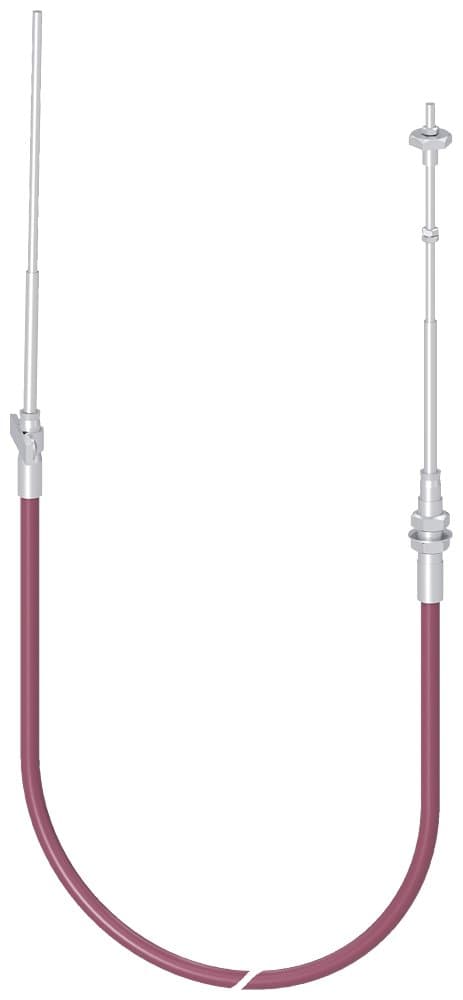

Operating unit with Bowden cable Maximum Flex actuator Single Bowden cable Length 1.8 m (72") Accessories for: 3VA5/6 125/150/250

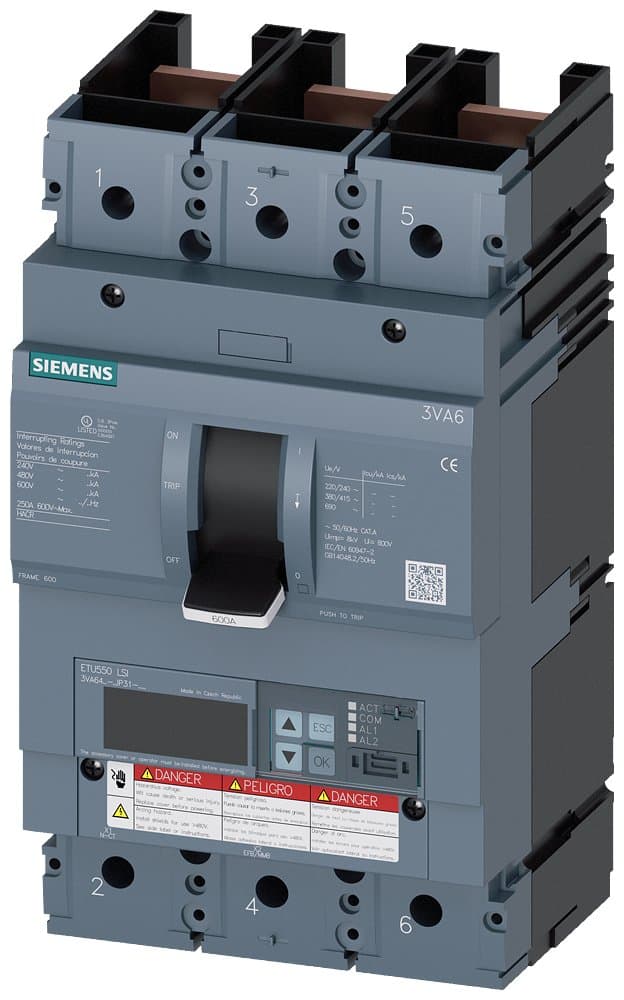

Circuit Breaker 3VA6 UL Frame Size 600 Interrupting Rating Class H 65kA @ 480V 3-Pole

Siemens 3VT8 Series Molded Case Circuit Breakers and Accessories

Circuit Breaker 3VA1 IEC Frame 160 Interrupting Capacity Rating N Icu=25 kA @ 415 V 2-pole, System Protection TM210, FTFM, In = 16A Overload Protection Ir=16A Fixed Setting Short Circuit Protection Ii=20 x In Terminal Connection

Siemens 3VT8 Series Molded Case Circuit Breakers and Accessories

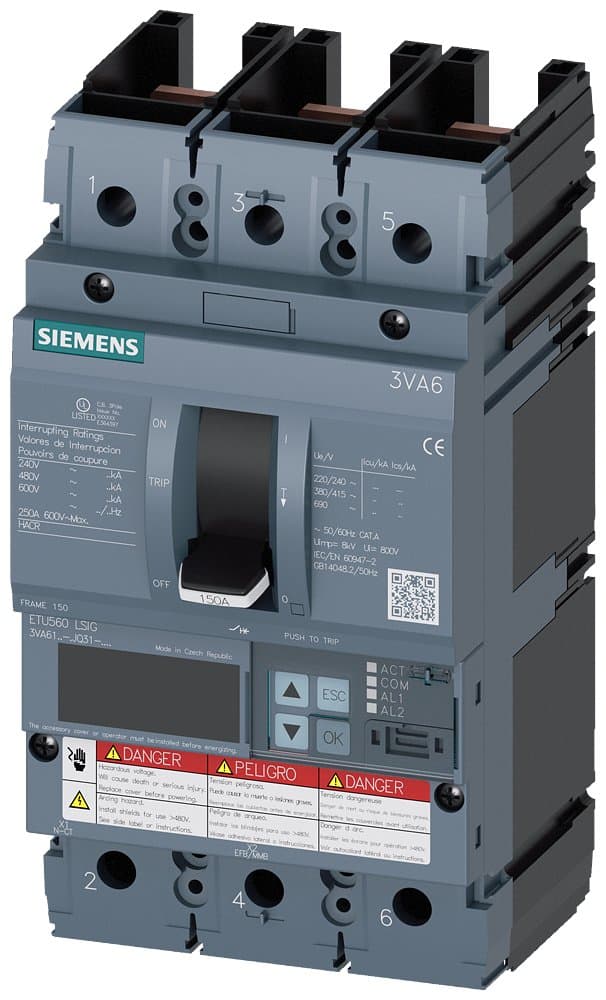

Circuit Breaker 3VA6 UL Frame 150 Interrupting Rating Class C 100kA @ 480V 3-pole

Siemens 3VT8 Series Molded Case Circuit Breakers and Accessories

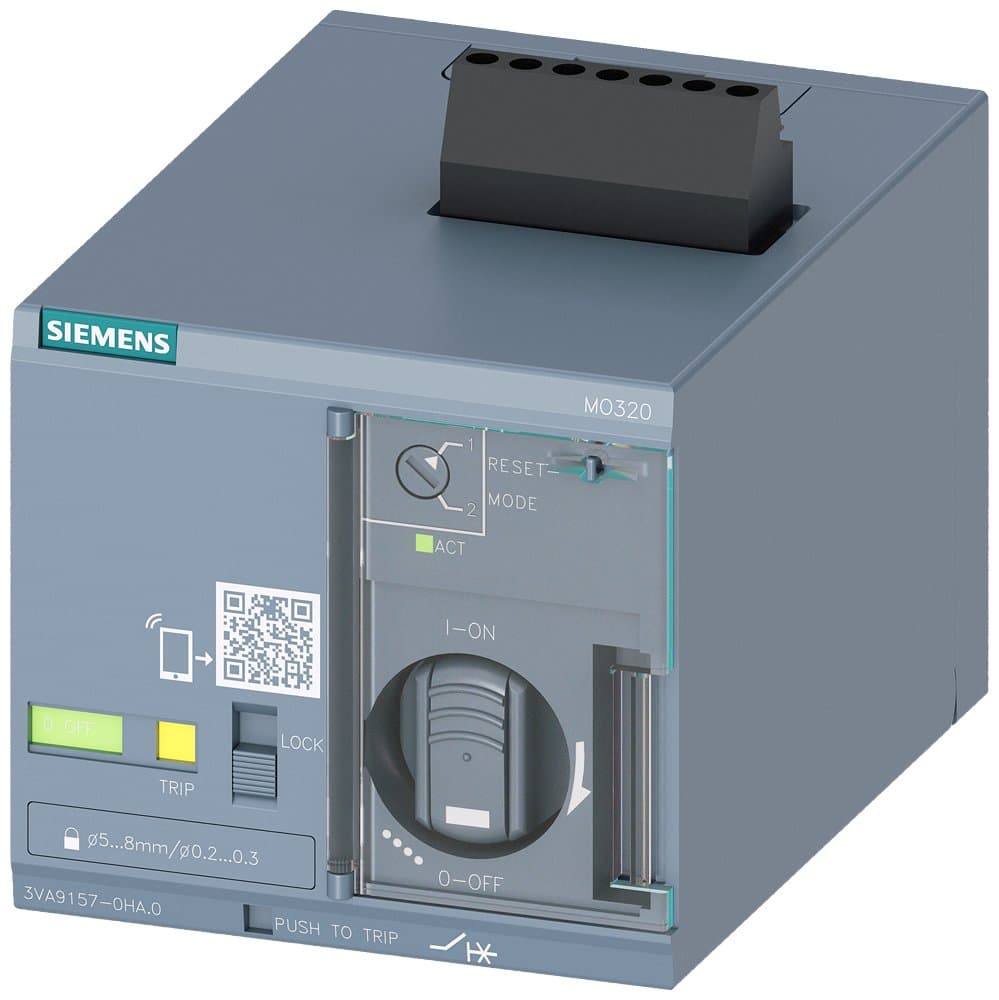

Motor operating mechanism 24-60V DC accessory, used for: 3VA5 125

Circuit Breaker 3VA5 UL Frame 125 Interrupting Rating Class S 25kA @ 277V 1 Pole

The circuit breaker VT250 has a standard breaking capacity of N Icu=35kA, 415/440 VAC 3-pole, with electronic trip unit for system/motor protection. The rated current In is 200A, IR=0.4 to 1 x In, overload protection II=2; 5; 10; 12x In, and short circuit protection. It does not have an auxiliary trip unit and comes with rear terminals equipped with 1x HS plug-in after installation.

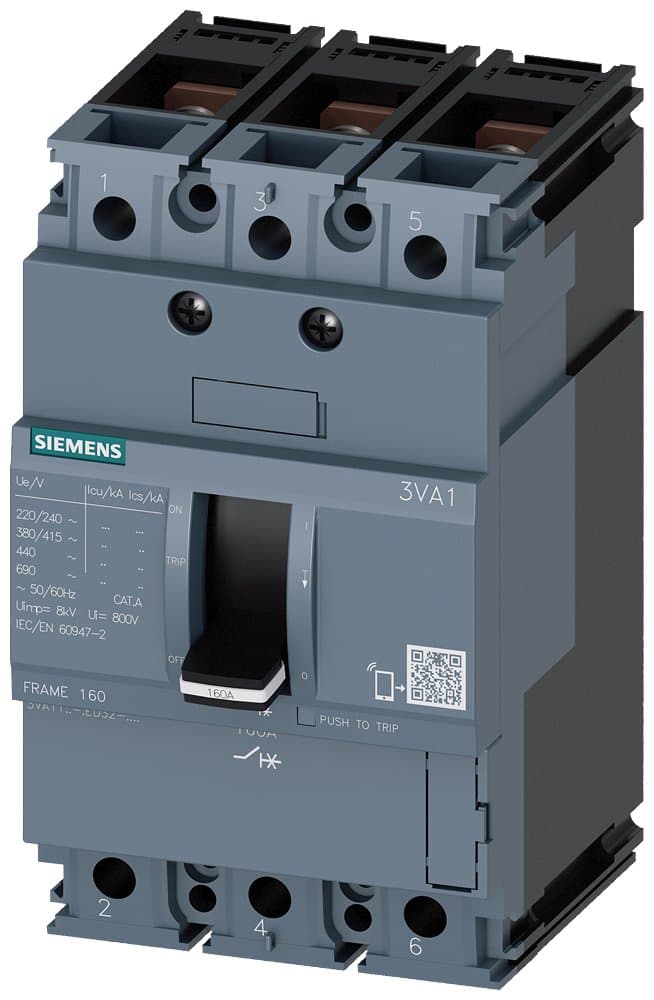

Circuit breaker 3VA1 IEC frame 160 Interrupting capacity class H Icu=70kA @ 415V 3 poles, system protection TM210, FTFM, In=63A Overload protection Ir=63A Fixed setting Short-circuit protection Ii=10 x In Screw flat connector

Circuit Breaker 3VM1 IEC Frame 160 Breaking Capacity Rating M Icu=55 kA @ 415 V 4-pole
