Product Model

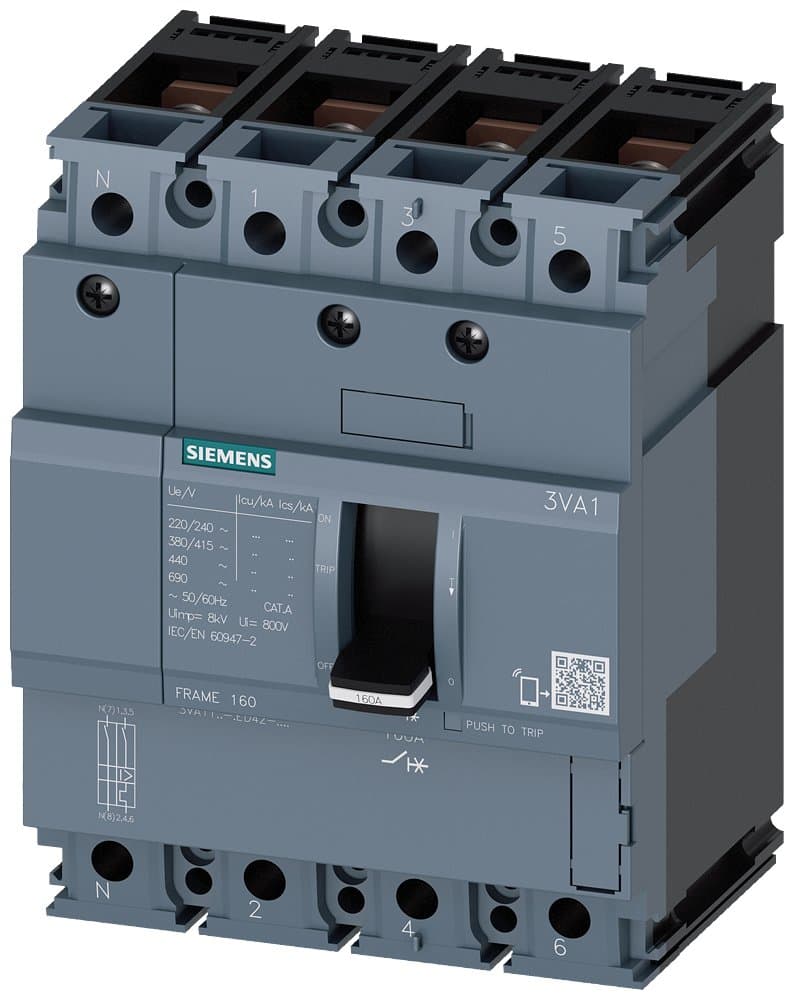

3VA1116-4ED42-0AA0
Selling Points
- 136 kA at 415 V for reliable line protection.
- 2Equipped with TM210 and FTFM for comprehensive protection.
- 3Available in fixed-mounted, plug-in, and draw-out versions.
- 4Thermal-magnetic trip units ensure economical installations up to 160 A.
- 5Wide range of internal accessories for flexible use and customization.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Rated Service Breaking Capacity Ics(kA):@400V or 415V | 36 | Rated Voltage(V): | 690 |
Number of Poles: | 4P | Description | 3VA1S160 R160 TM210 F/4P; 3VA1_160 dimensions; Rated current 160A; Interrupting S:36kA; Trip unit TM210; |
Mounting Method: | F: Fixed | Trip Unit: (If required is not in the list, click reset, select trip unit first) | TM210【LI fixed, line protection】 |
Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 36 | Interrupting Rating: | S:36kA |
Rated Current In(A): | 160 | Specifications: | 160【1-160A】 |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | 9N9999 | AL | N |
Model Number | 3VA1116-4ED42-0AA0 |
Specifications may be subject to change without notice
