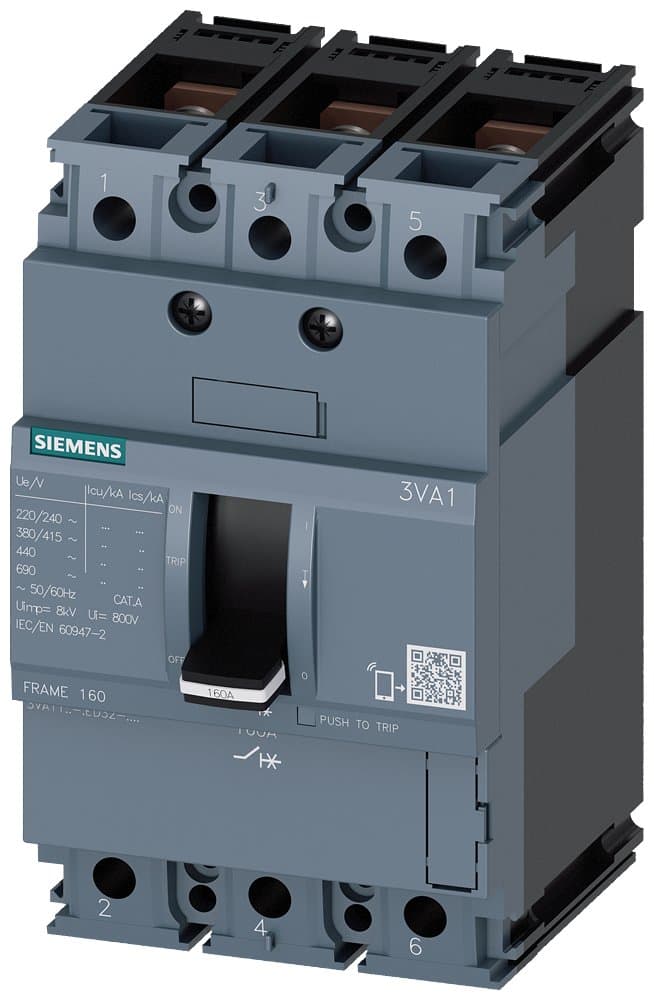

Product Model
3VA1120-4ED32-0AA0
Selling Points
- 136 kA for reliable operation under high voltage conditions.
- 276.2mm length, 70mm width, and 130mm depth for easy installation in tight spaces.
- 3Combines thermal and magnetic elements for robust overload protection.
- 4Meets international standards for electrical safety and performance.
- 5Designed to save energy and extend the life of your electrical system.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Rated Service Breaking Capacity Ics(kA):@400V or 415V | 36 | Rated Voltage(V): | 690 |
Number of Poles: | 3P | Description | 3VA1S160 R20 TM210 F/3P; 3VA1_160 dimensions; Rated current 20A; Interrupting S:36kA; Trip unit TM210; |
Mounting Method: | F: Fixed Mounting | Trip Unit: (If required is not in the list, click reset, select trip unit first) | TM210【LI fixed, line protection】 |
Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 36 | Interrupting Class: | S:36kA |
Rated Current In(A): | 20 | Specifications: | 160【1-160A】 |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | N | AL | N |
Model Number | 3VA1120-4ED32-0AA0 |
Specifications may be subject to change without notice
