Product Model

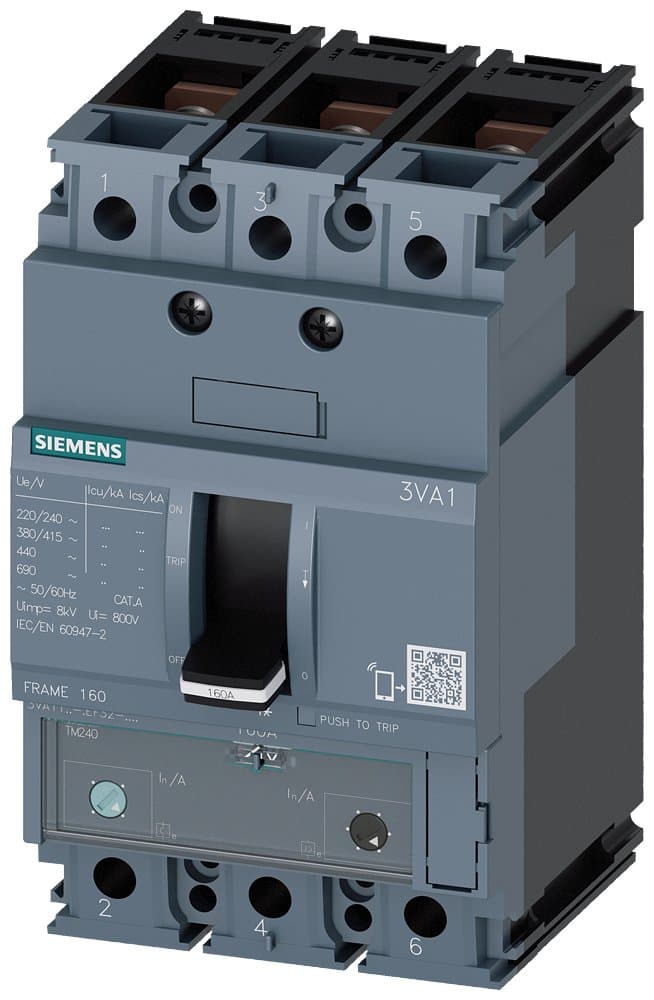

3VA1140-5EF32-0AA0
Selling Points
- 1High breaking capacity of 55 kA at 415 V for reliable operation.
- 2Line protection with TM240, ATAM, and In=40 A overload protection.
- 3Compact design suitable for 3-pole applications.
- 4Enhanced safety features including automatic line protection.
- 5Durable construction for long-lasting performance in industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Rated Service Breaking Capacity Ics(kA):@400V or 415V | 55 | Rated Voltage(V): | 690 |
Number of Poles: | 3P | Description | 3VA1M160 R40 TM240 F/3P; 3VA1_160 dimensions; Rated current 40A; Interrupting rating M:55kA; Trip unit TM240; |
Mounting Method: | F: Fixed | Trip Unit: (If required is not in the list, click reset, select trip unit first) | TM240 [Thermal Magnetic Type LI] |
Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 55 | Interrupting Rating: | M:55kA |
Rated Current In(A): | 40 | Specifications: | 160 [1-160A] |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | N | AL | N |
Model Number | 3VA1140-5EF32-0AA0 |
Specifications may be subject to change without notice
