Product Model

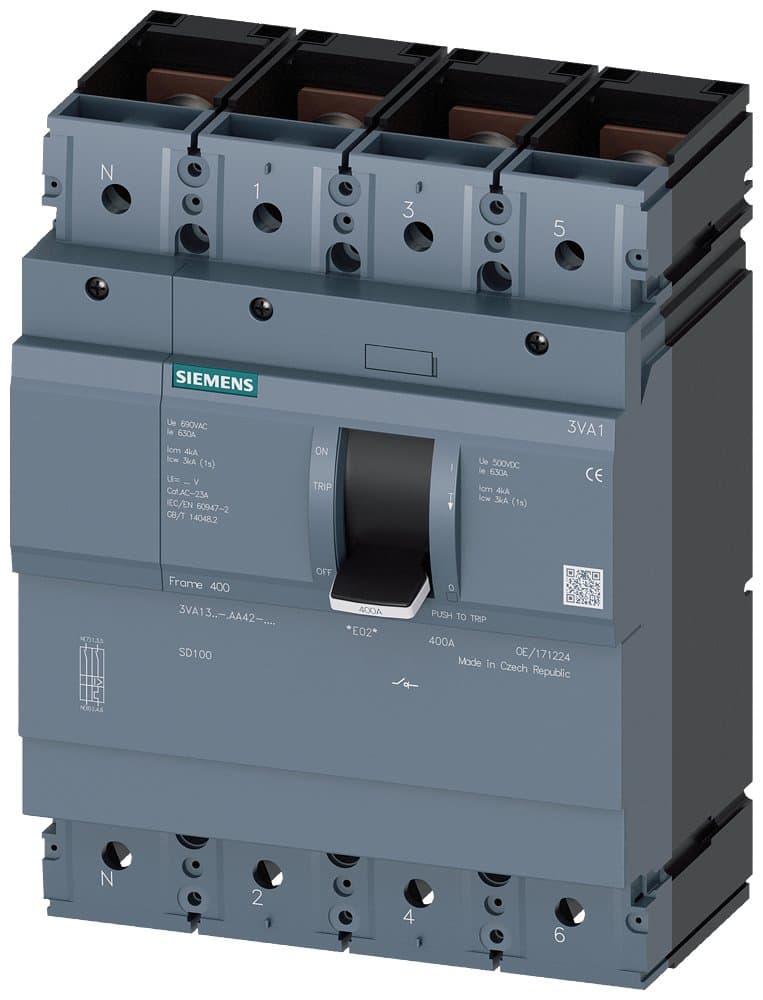

3VA1340-1AA42-0AA0
Selling Points
- 1High current rating of 400A for efficient power handling.
- 24-pole IEC frame 400 SD100 design for robust electrical connections.
- 3Compact and reliable switch disconnector suitable for various industrial settings.
- 4Operating temperature range of -25°C to 70°C for versatile use.
- 5Screw-type electrical connections ensure secure and durable connections.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Rated Voltage(V): | 690 | Number of Poles: | 4P |
Description | 3VA1B400 R400 SD100 F/4P; 3VA1_400 dimensions; Rated current 400A; Breaking B: 16kA; Trip unit SD100; | Mounting Method: | F: Fixed |
Trip Unit: (If required is not in the list, reset and select trip unit first) | SD100【Isolator Switch】 | Breaking Rating: | (Isolation) |
Rated Current In(A): | 400 | Specifications: | 400【250-400A】 |
Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
ECCN | 9N9999 | AL | N |
Model Number | 3VA1340-1AA42-0AA0 |
Specifications may be subject to change without notice
