Product Model

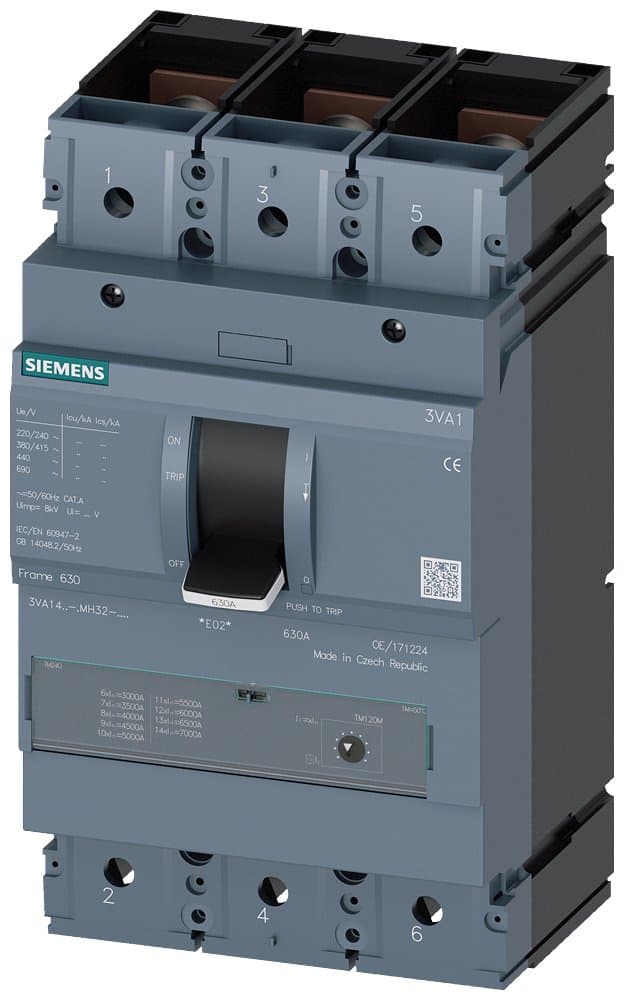

3VA1440-5MH32-0AA0
Selling Points
- 1High breaking capacity of 55 kA at 415 V for reliable operation.
- 2Integrated starter protection TM120M for enhanced safety.
- 3Rated current of 400 A without overload protection.
- 4Meets IEC Frame 630 standards for robust performance.
- 5Ideal for 3-pole applications with advanced protection features.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Rated Service Breaking Capacity Ics(kA):@400V or 415V | 55 | Rated Voltage(V): | 690 |
Number of Poles: | 3P | Description | 3VA1M630 R400 TM120M F/3P; 3VA1_630 dimensions; Rated current 400A; Interrupting M:55kA; Trip unit TM120M; |
Mounting Method: | F: Fixed | Trip Unit: (If required is not in the list, click reset, select trip unit first) | TM120M【Single Magnetic (I adjustable)】 |
Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 55 | Interrupting Rating: | M:55kA |
Rated Current In(A): | 400 | Specifications: | 630【400-630A】 |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | 9N9999 | AL | N |
Model Number | 3VA1440-5MH32-0AA0 |
Specifications may be subject to change without notice
