Product Model

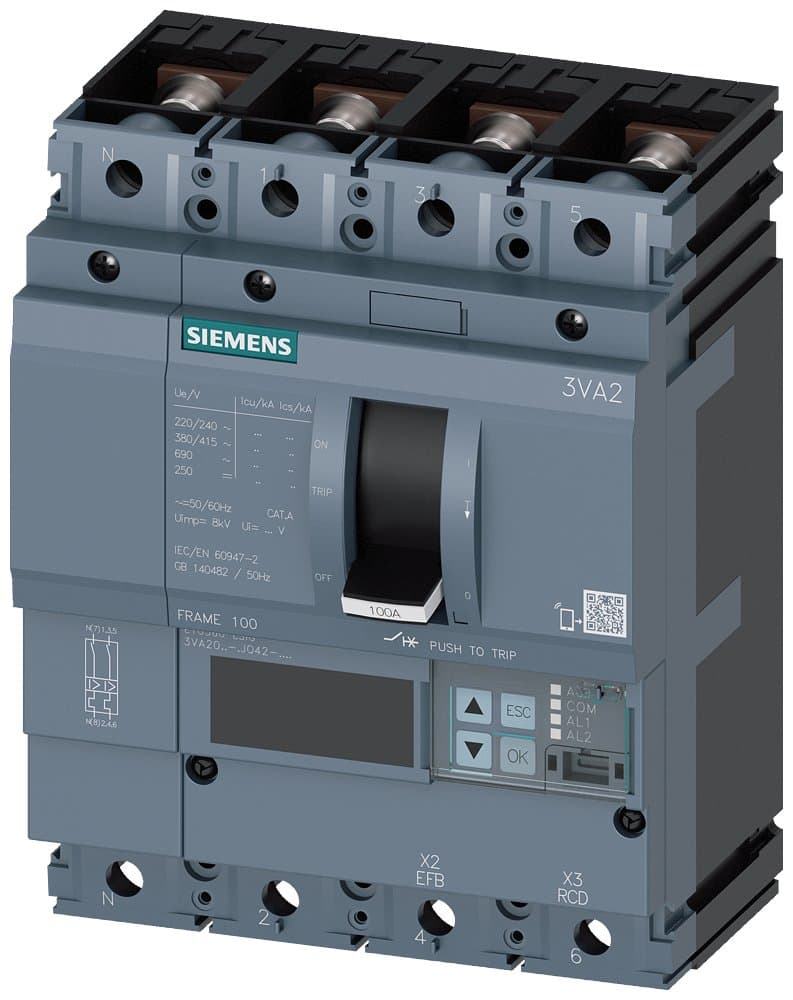

3VA2040-6JQ42-0AA0
Selling Points
- 1High breaking capacity up to 85 kA at 415 V.
- 2Selective protection with dynamic instantaneous short-circuit range.
- 3Integrated metering function for precise energy measurement.
- 4Electronic Trip Units (ETUs) with overload and short-circuit protection.
- 5Compact design with modular and easy-to-fit internal accessories.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Rated Service Breaking Capacity Ics(kA): @400V or 415V | 85 | Rated Voltage(V): | 690 |
Number of Poles: | 4P | Description | 3VA2H100 R40 ETU560 F/4P; 3VA2_100 dimensions; Rated current 40A; Interrupting rating H:85kA; Trip unit ETU560; |
Mounting Method: | F: Fixed | Trip Unit: (If required is not in the list, click reset, select trip unit first) | ETU560 [Electronic LSIG + LCD] |
Rated Ultimate Breaking Capacity Icu(kA): @400V or 415V | 85 | Interrupting Rating: | H:85kA |
Rated Current In(A): | 40 | Specifications: | 100 [16-100A] |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | 9N9999 | AL | N |
Model Number | 3VA2040-6JQ42-0AA0 |
Specifications may be subject to change without notice
