Product Model

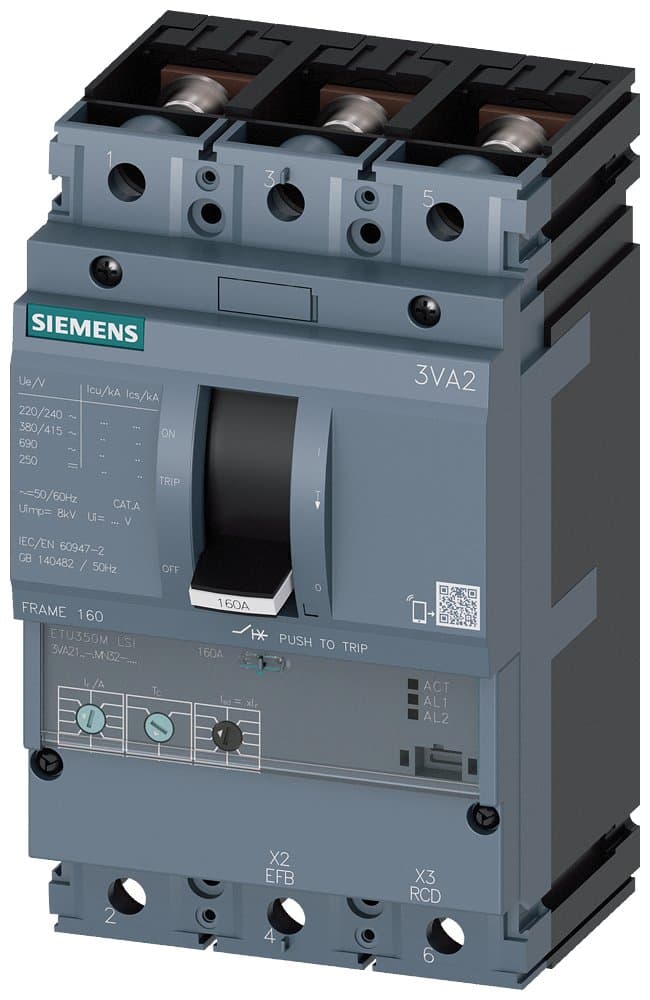

3VA2110-5MN32-0AA0
Selling Points
- 155 kA at 415V, ensuring effective protection against short circuits.
- 2Ideal for industrial applications with a compact and modular design.
- 3Equipped with ETU350M and LSI for reliable motor protection.
- 4Adjustable response value current (40A-100A) for customizable settings.
- 5Built with a solid-state overcurrent trip unit and high electrical endurance (12,000 switching cycles at 380/415V).
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Rated Service Breaking Capacity Ics(kA): @400V or 415V | 55 | Rated Voltage(V): | 690 |
Number of Poles: | 3P | Description | 3VA2M160 R100 ETU350M F/3P; 3VA2_160 dimensions; Rated current 100A; Interrupting rating M: 55kA; Trip unit ETU350M; |
Mounting Method: | F: Fixed | Trip Unit: (If required is not in the list, reset and select trip unit first) | ETU350M [Motor Protection LSI] |
Rated Ultimate Breaking Capacity Icu(kA): @400V or 415V | 55 | Interrupting Rating: | M: 55kA |
Rated Current In(A): | 100 | Specifications: | 160 [1-160A] |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | 9N9999 | AL | N |
Model Number | 3VA2110-5MN32-0AA0 |
Specifications may be subject to change without notice
