Product Model

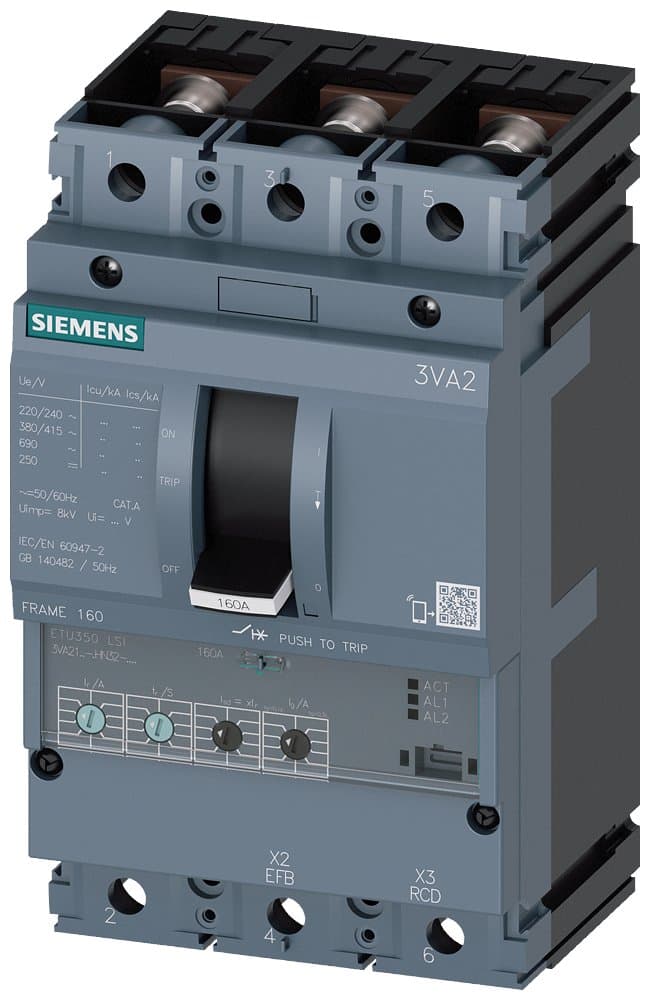

3VA2110-6HN32-0AA0
Selling Points
- 1High breaking capacity of 85 kA @ 415 V for efficient power interruption.
- 2Advanced line protection with ETU350 and LSI for enhanced safety.
- 3Overload protection up to 100 A for secure operation.
- 4Compact IEC Frame 160 design for easy integration.
- 5Reliable 3-pole configuration for balanced electrical systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Rated Service Breaking Capacity Ics(kA):@400V or 415V | 85 | Rated Voltage(V): | 690 |
Number of Poles: | 3P | Description | 3VA2H160 R100 ETU350 F/3P; 3VA2_160 dimensions; Rated current 100A; Interrupting rating H:85kA; Trip unit ETU350; |
Mounting Method: | F: Fixed | Trip Unit: (If required is not in the list, reset and select trip unit first) | ETU350【Electronic LSI】 |
Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 85 | Interrupting Rating: | H:85kA |
Rated Current In(A): | 100 | Specifications: | 160【1-160A】 |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | 9N9999 | AL | N |
Model Number | 3VA2110-6HN32-0AA0 |
Specifications may be subject to change without notice
