Product Model

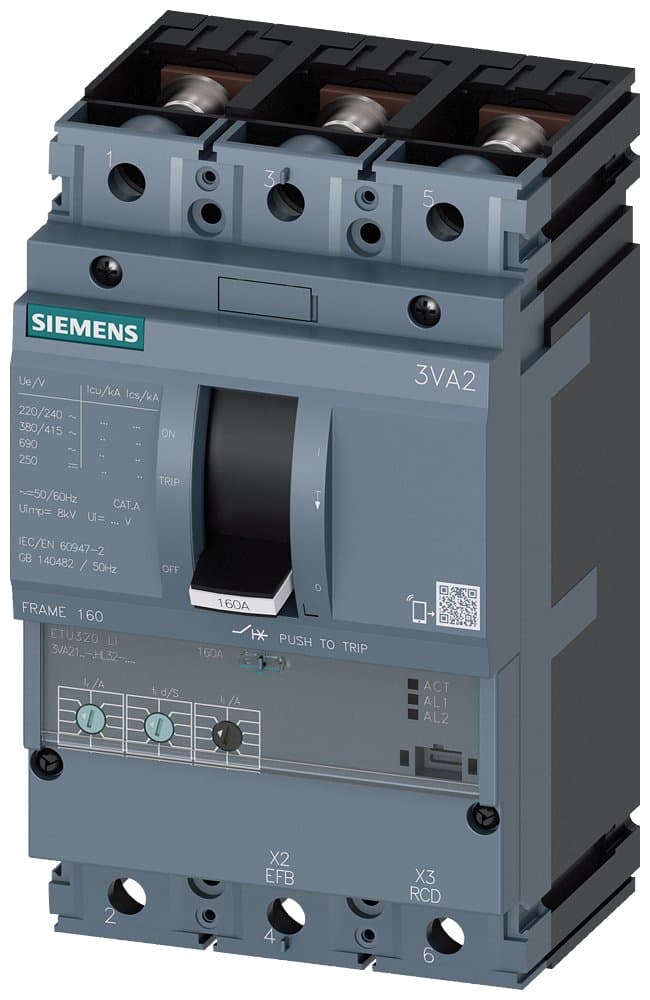

3VA2116-8HL32-0AA0
Selling Points
- 1High breaking capacity of 150 kA at 415 V.
- 23-pole design for efficient line protection.
- 3Overload protection up to 160 A.
- 4IEC Frame 160 for robust construction.
- 5SENTRON MCCB series for reliable performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Rated Service Breaking Capacity Ics(kA):@400V or 415V | 150 | Rated Voltage(V): | 690 |
Number of Poles: | 3P | Description | 3VA2L160 R160 ETU320 F/3P; 3VA2_160 dimensions; Rated current 160A; Interrupting L:150kA; Trip unit ETU320; |
Mounting Method: | F: Fixed | Trip Unit: (If required is not in the list, reset and select trip unit first) | ETU320【Electronic LI】 |
Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 150 | Interrupting Rating: | L:150kA |
Rated Current In(A): | 160 | Specifications: | 160【1-160A】 |
Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
ECCN | 9N9999 | AL | N |
Model Number | 3VA2116-8HL32-0AA0 |
Specifications may be subject to change without notice
