Product Model

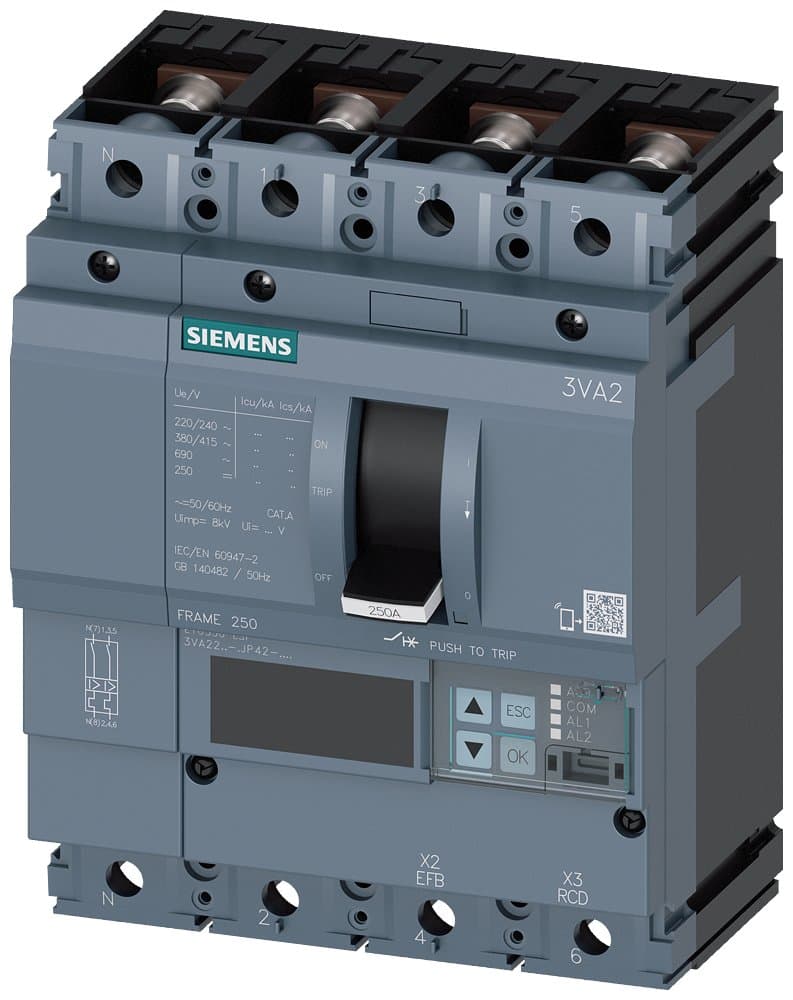

3VA2216-5JP42-0AA0
Selling Points
- 1High breaking capacity up to 55 kA at 415 V.
- 2Selective protection for precise tripping in case of faults.
- 3Integrated metering function for real-time energy data.
- 4Compact design with fixed-mounting, plug-in, and draw-out technology.
- 5Modular and easy-to-fit internal accessories for diverse functions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Rated Service Intermittent Breaking Capacity Ics(kA): @400V or 415V | 55 | Rated Voltage (V) | 690 |
Number of Poles | 4P | Description | 3VA2M250 R160 ETU550 F/4P; 3VA2_250 dimensions; Rated current 160A; Interrupting rating M:55kA; Trip unit ETU550; |
Mounting Method | F: Fixed | Trip Unit (Reset and select trip unit if not listed) | ETU550 [Electronic LSI + LCD] |
Rated Ultimate Breaking Capacity Icu(kA): @400V or 415V | 55 | Interrupting Rating | M:55kA |
Rated Current In(A) | 160 | Specifications | 250 [160-250A] |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | 9N9999 | AL | N |
Model Number | 3VA2216-5JP42-0AA0 |
Specifications may be subject to change without notice
