Product Model

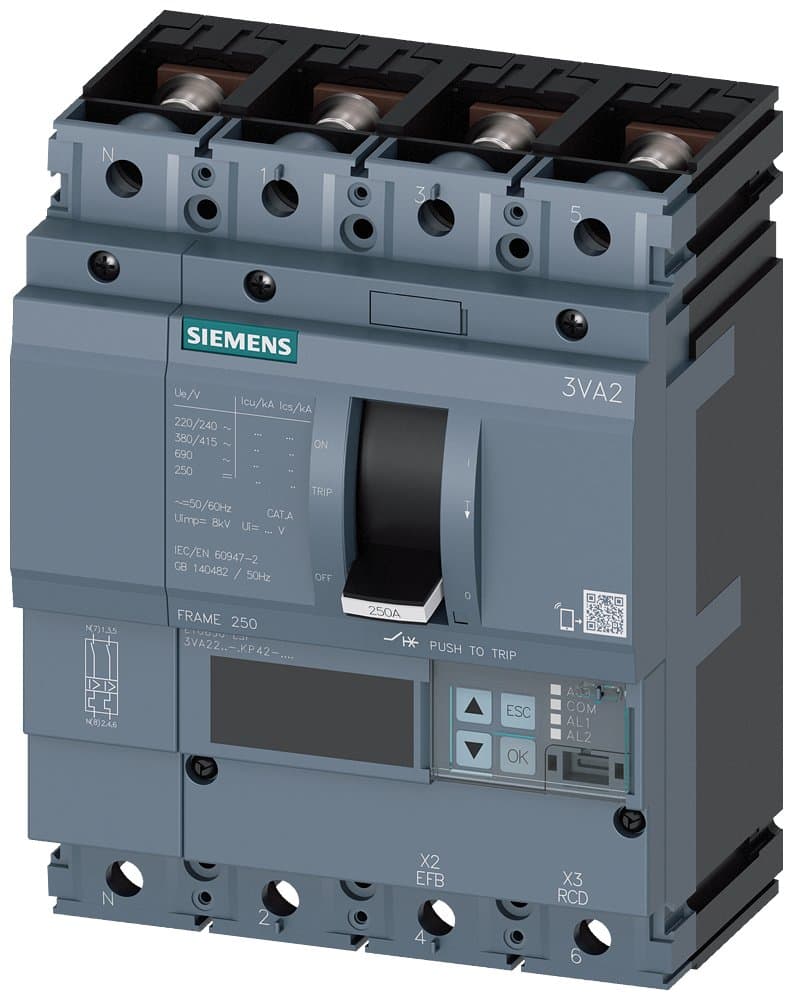

3VA2216-6KP42-0AA0
Selling Points
- 1High breaking capacity up to 70 kA at 415 V.
- 2Compact design with standardized installation procedures.
- 3Modular and easy-to-fit internal accessories for diverse functions.
- 4Uniform accessories platform across all 3VA molded case circuit breakers.
- 5Selective protection response in rated operational current interval 1:2.5.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Rated Service Intermittent Breaking Capacity Ics(kA) @400V or 415V | 85 | Rated Voltage (V) | 690 |
Number of Poles | 4P | Description | 3VA2H250 R160 ETU850 F/4P; 3VA2_250 dimensions; Rated current 160A; Interrupting rating H:85kA; Trip unit ETU850; |
Mounting Method | F: Fixed | Trip Unit (Reset and select trip unit if not listed) | ETU850 [Electronic LSI + LCD + Mea] |
Rated Ultimate Breaking Capacity Icu(kA) @400V or 415V | 85 | Interrupting Rating | H:85kA |
Rated Current In(A) | 160 | Specifications | 250 [160-250A] |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | 9N9999 | AL | N |
Model Number | 3VA2216-6KP42-0AA0 |
Specifications may be subject to change without notice
