Product Model

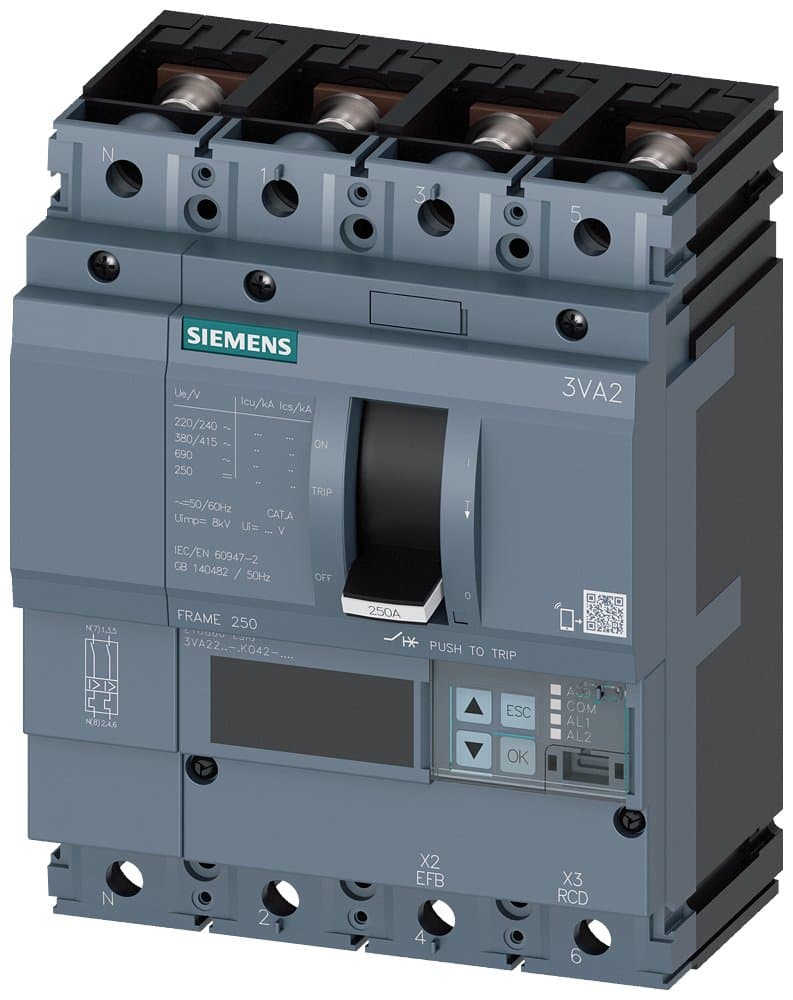

3VA2225-7KQ42-0AA0
Selling Points
- 1High breaking capacity up to 110 kA at 415 V.
- 2Advanced line protection with ETU860 and LSIG.
- 3Compact design with a cover size of 70 mm.
- 4Modular and easy-to-fit internal accessories.
- 5Integrated metering function for energy data collection.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Rated Service Breaking Capacity Ics(kA):@400V or 415V | 110 | Rated Voltage(V): | 690 |
Number of Poles: | 4P | Description | 3VA2C250 R250 ETU860 F/4P; 3VA2_250 dimensions; Rated Current 250A; Interrupting C:110kA; Trip Unit ETU860; |
Mounting Method: | F: Fixed | Trip Unit: (If required is not in the list, reset and select the trip unit first) | ETU860【Electronic LSIG+LCD+Mea】 |
Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 110 | Interrupting Rating: | C:110kA |
Rated Current In(A): | 250 | Specifications: | 250【160-250A】 |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | 9N9999 | AL | N |
Model Number | 3VA2225-7KQ42-0AA0 |
Specifications may be subject to change without notice
