Product Model

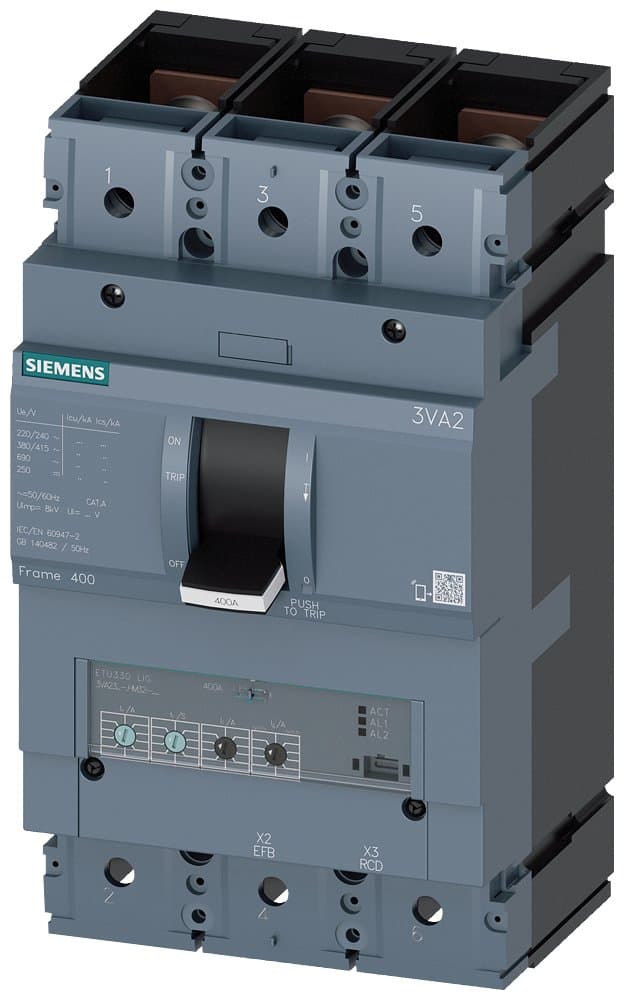

3VA2325-6HM32-0AA0
Selling Points
- 1High breaking capacity of 85 kA at 415 V for efficient short-circuit protection.
- 2Line protection with ETU330 technology for enhanced safety and reliability.
- 3Overload protection up to 250 A for secure motor and starter combination applications.
- 4Compact design with plug-in technology for easy installation and maintenance.
- 5Integrated metering function for precise energy management and monitoring.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Rated Service Intermittent Breaking Capacity Ics(kA): @400V or 415V | 85 | Rated Voltage(V): | 690 |
Number of Poles: | 3P | Description | 3VA2H400 R250 ETU330 F/3P; 3VA2_400 dimensions; Rated Current 250A; Interrupting H:85kA; Trip Unit ETU330; |
Mounting Method: | F: Fixed | Trip Unit: (If required is not in the list, reset and select trip unit first) | ETU330 [Electronic LIG] |
Rated Ultimate Breaking Capacity Icu(kA): @400V or 415V | 85 | Interrupting Rating: | H:85kA |
Rated Current In(A): | 250 | Specification: | 400 [250-400A] |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | 9N9999 | AL | N |
Model Number | 3VA2325-6HM32-0AA0 |
Specifications may be subject to change without notice
