Product Model

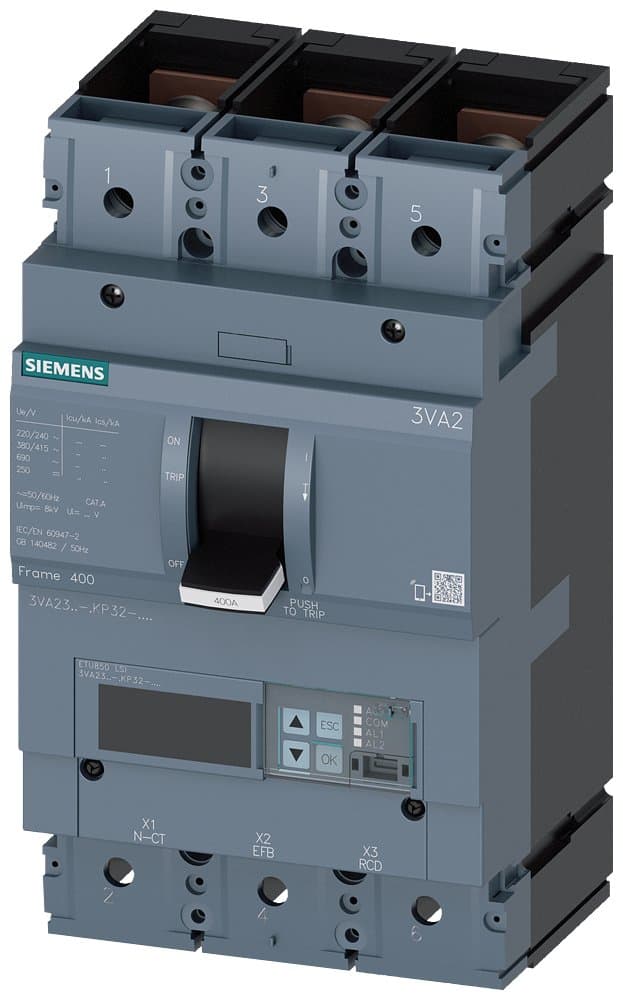

3VA2340-6KP32-0AA0
Selling Points
- 1Compact Design: The 3VA2340-6KP32-0AA0 features a compact design with a mounting depth of 70 mm and cover size of 45 mm, ideal for plant area installations.
- 2Flexible Accessories: Equipped with a wide range of modular and easy-to-fit internal accessories, including alarm and auxiliary switches, for flexible use.
- 3High Breaking Capacity: Offers breaking capacities from 16 kA to 70 kA at 415 V, ensuring reliable protection against short circuits.
- 4Integrated Metering Function: Includes integrated metering functions for energy management and communication, enhancing system transparency.
- 5Enhanced Safety Features: Features thermal-magnetic trip units and electronic trip units with selective protection, ensuring safe operation and minimal downtime.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Rated Service Intermittent Breaking Capacity Ics(kA):@400V or 415V | 85 | Rated Voltage(V): | 690 |
Number of Poles: | 3P | Description | 3VA2H400 R400 ETU850 F/3P; 3VA2_400 dimensions; Rated current 400A; Interrupting rating H:85kA; Trip unit ETU850; |
Mounting Method: | F: Fixed | Trip Unit: (If required is not in the list, reset and select trip unit first) | ETU850【Electronic LSI+LCD+Mea】 |
Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 85 | Interrupting Rating: | H:85kA |
Rated Current In(A): | 400 | Specifications: | 400【250-400A】 |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | 9N9999 | AL | N |
Model Number | 3VA2340-6KP32-0AA0 |
Specifications may be subject to change without notice
