Product Model

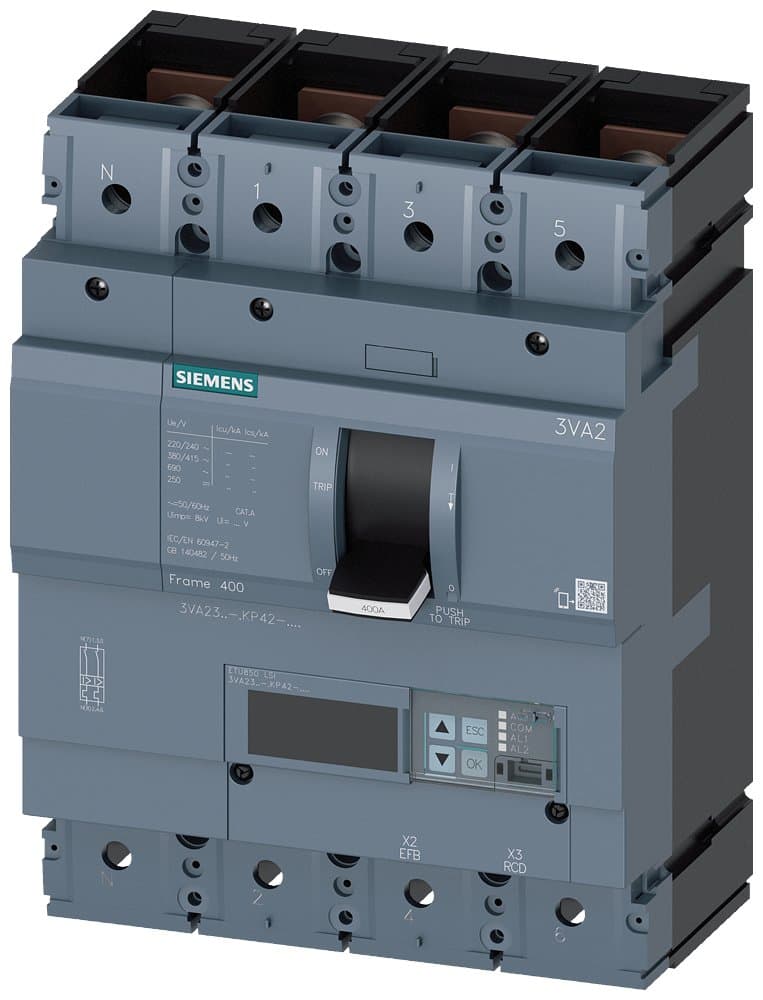

3VA2340-7KP42-0AA0
Selling Points
- 1High Breaking Capacity: With a rated short-circuit breaking capacity of 110 kA at 415 V, ensuring reliable protection against short circuits.
- 2Flexible Installation Options: Available in fixed, plug-in, and withdrawable versions to suit various installation needs.
- 3Advanced Line Protection: Equipped with ETU850 line protection for comprehensive system protection.
- 4Compact Design: Compact dimensions with a cover size of 70 mm for easy integration into plant and infrastructure applications.
- 5Modular Accessories: Compatible with a wide range of modular accessories for enhanced functionality and customization.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Rated Service Intermittent Breaking Capacity Ics(kA): @400V or 415V | 110 | Rated Voltage(V): | 690 |
Number of Poles: | 4P | Description | 3VA2C400 R400 ETU850 F/4P; 3VA2_400 dimensions; Rated current 400A; Interrupting rating C:110kA; Trip unit ETU850; |
Mounting Method: | F: Fixed Type | Trip Unit: (If required is not in the list, reset and select trip unit first) | ETU850 [Electronic LSI+LCD+Mea] |
Rated Ultimate Breaking Capacity Icu(kA): @400V or 415V | 110 | Interrupting Rating: | C:110kA |
Rated Current In(A): | 400 | Specifications: | 400 [250-400A] |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | 9N9999 | AL | N |
Model Number | 3VA2340-7KP42-0AA0 |
Specifications may be subject to change without notice
