Product Model

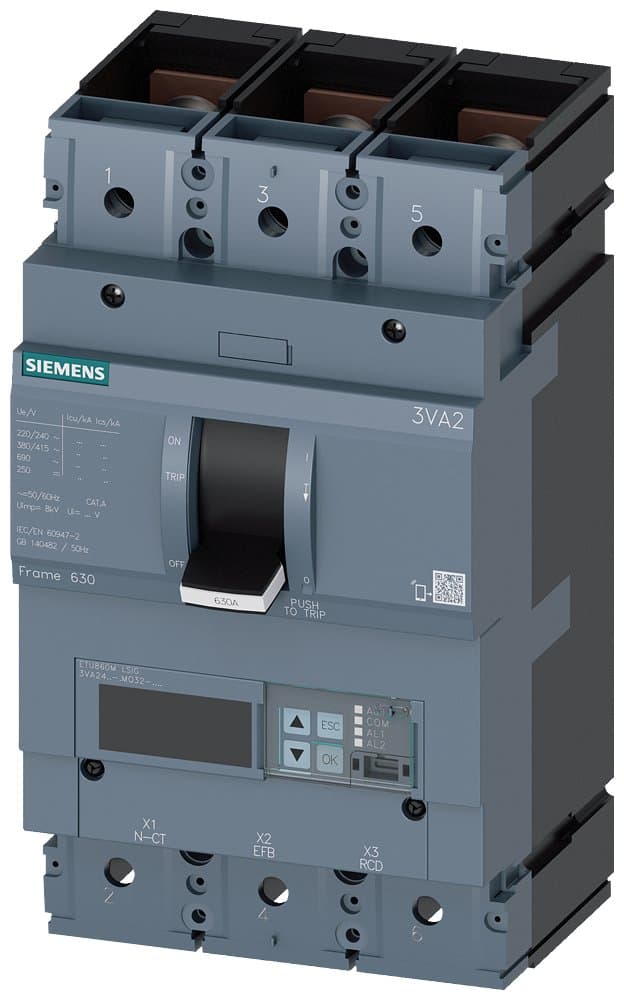

3VA2440-5MQ32-0AA0
Selling Points
- 1High breaking capacity up to 55 kA @ 415 V for reliable protection.
- 2Advanced motor protection with ETU860M for optimal motor safety.
- 3Integrated overload protection with 400 A current rating.
- 4Flexible communication options via bus systems for seamless integration.
- 5Compact design with modular internal accessories for easy installation and maintenance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Rated Service Intermittent Breaking Capacity Ics(kA):@400V or 415V | 55 | Rated Voltage(V): | 690 |
Number of Poles: | 3P | Description | 3VA2M630 R400 ETU860M F/3P; 3VA2_630 Dimensions; Rated Current 400A; Interrupting M:55kA; Trip Unit ETU860M; |
Mounting Method: | F: Fixed Type | Trip Unit: (If required is not in the list, reset and select trip unit first) | ETU860M【Motor Protection, LSIG+LCD+Mea】 |
Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 55 | Interrupting Rating: | M:55kA |
Rated Current In(A): | 400 | Specifications: | 630【400-630A】 |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | 9N9999 | AL | N |
Model Number | 3VA2440-5MQ32-0AA0 |
Specifications may be subject to change without notice
