Product Model

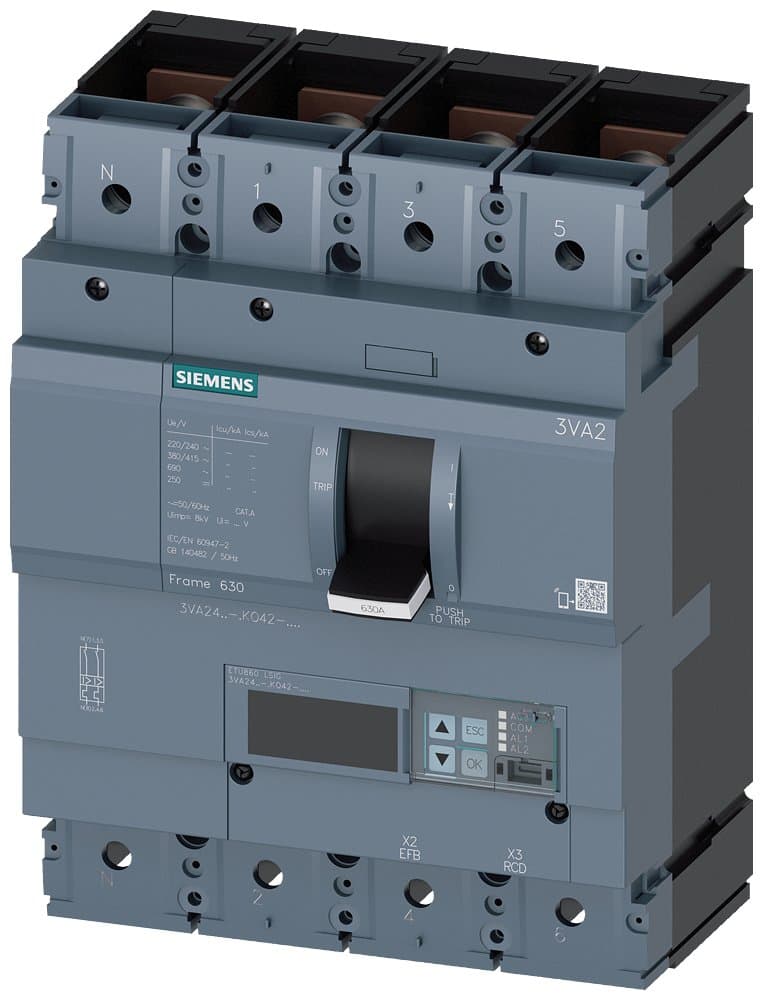

3VA2450-7KQ42-0AA0
Selling Points
- 1110 kA at 415 V for reliable line protection.
- 2ETU860 and LSIG ensure comprehensive protection against short circuits and overloads.
- 3Suitable for 4-pole applications with a compact frame size.
- 4Optional integrated metering function for precise energy management.
- 5Available in fixed-mounting, plug-in, and draw-out technologies for versatile installation options.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Rated Service Breaking Capacity Ics(kA):@400V or 415V | 110 | Rated Voltage(V): | 690 |
Number of Poles: | 4P | Description | 3VA2C630 R500 ETU860 F/4P; 3VA2_630 dimensions; Rated Current 500A; Interrupting C:110kA; Trip Unit ETU860; |
Mounting Method: | F: Fixed | Trip Unit: (If required is not in the list, reset and select trip unit first) | ETU860【Electronic LSIG+LCD+Mea】 |
Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 110 | Interrupting Rating: | C:110kA |
Rated Current In(A): | 500 | Specifications: | 630【400-630A】 |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | 9N9999 | AL | N |
Model Number | 3VA2450-7KQ42-0AA0 |
Specifications may be subject to change without notice
